ECO 25 MF-3 Enidine Non-Adjustable Hydraulic Shock Absorber, M14 x 1.0 Thread, 16.0 mm Stroke
Sku#: ECO 25 MF-3
Contact us for availability.
Details
More Information
Reviews

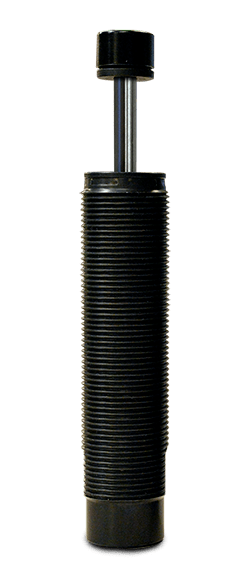

The Enidine ECO 25 MF-3 is a non-adjustable hydraulic shock absorber with an M14 x 1.0 mounting thread, 0.63 in (16.0 mm) stroke and damping constant -3.
Enidine ECO Series non-adjustable hydraulic shock absorbers are tamperproof, giving consistent performance cycle after cycle, and are designed to absorb maximum energy within a compact envelope. The ECO Series is designed with materials and fluids that are safe for the environment and accommodates a wide range of operating conditions, from low velocity/high drive force to high velocity/low drive force.
Specifications:
| Manufacturer: | Enidine |
| Model: | ECO 25 MF-3 |
| Enidine part number: | MU238423 |
| Series: | ECO |
| Type: | Non-adjustable hydraulic shock absorber |
| Mounting thread: | M14 x 1.0 |
| Damping constant: | -3 |
| Stroke: | 0.63 in (16.0 mm) |
| Max. energy per cycle: | 265 in-lbs/cycle (30.0 Nm/cycle) |
| Max. emergency energy per cycle: | 500 in-lbs/cycle (56 Nm/cycle) |
| Max. energy per hour: | 389,000 in-lbs/hour (44 000 Nm/hour) |
| Max. reaction force: | 625 lbs (2 800 N) |
| Nominal coil spring force, extended: | 1.0 lbs (4.5 N) |
| Nominal coil spring force, compressed: | 2.5 lbs (11.0 N) |
| Max. propelling force: | 200 lbs (890 N) |
| Weight: | 2.4 oz (68 g) |
- One hex jam nut is included with every shock absorber.
- The emergency energy rating is for emergency use only; Enidine estimates a cycle life of 1-5 cycles if used at the maximum emergency rating.
Source: Enidine 2026 price list; ratings from the Enidine shock absorber catalogue (p.47).
