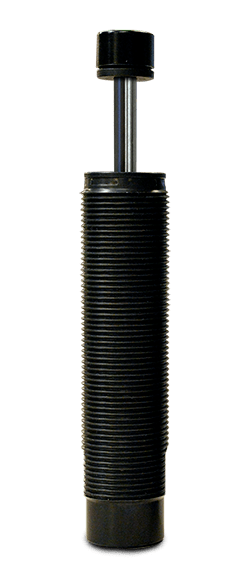

ECO 225 MF-1 Enidine Non-Adjustable Hydraulic Shock Absorber, M36 x 1.5 Thread, 50.0 mm Stroke

The Enidine ECO 225 MF-1 is a non-adjustable hydraulic shock absorber with an M36 x 1.5 mounting thread, 2.00 in (50.0 mm) stroke and damping constant -1.

Enidine ECO Series non-adjustable hydraulic shock absorbers are tamperproof, giving consistent performance cycle after cycle, and are designed to absorb maximum energy within a compact envelope. The ECO Series is designed with materials and fluids that are safe for the environment and accommodates a wide range of operating conditions, from low velocity/high drive force to high velocity/low drive force.

Specifications:

Manufacturer:	Enidine
Model:	ECO 225 MF-1
Enidine part number:	MU241121
Series:	ECO
Type:	Non-adjustable hydraulic shock absorber
Mounting thread:	M36 x 1.5
Damping constant:	-1
Stroke:	2.00 in (50.0 mm)
Max. energy per cycle:	3,100 in-lbs/cycle (350.0 Nm/cycle)
Max. emergency energy per cycle:	8,850 in-lbs/cycle (1 000 Nm/cycle)
Max. energy per hour:	1,124,000 in-lbs/hour (127 000 Nm/hour)
Max. reaction force:	2,500 lbs (11 120 N)
Nominal coil spring force, extended:	7.0 lbs (31.0 N)
Nominal coil spring force, compressed:	20.0 lbs (89.0 N)
Max. propelling force:	700 lbs (3 100 N)
Weight:	27.0 oz (765 g)

• One hex jam nut is included with every shock absorber.
• The emergency energy rating is for emergency use only; Enidine estimates a cycle life of 1-5 cycles if used at the maximum emergency rating.

Source: Enidine 2026 price list; ratings from the Enidine shock absorber catalogue (p.50).
