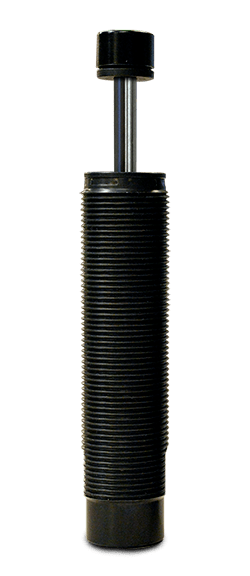

ECO 15 IF-2B Enidine Non-Adjustable Hydraulic Shock Absorber, 7/16-28 Thread, 0.41 in Stroke, Button
Sku#: ECO 15 IF-2B
Contact us for availability.
Details
More Information
Reviews
The Enidine ECO 15 IF-2B is a non-adjustable hydraulic shock absorber with a 7/16-28 mounting thread, 0.41 in (10.4 mm) stroke and damping constant -2, button model.
Enidine ECO Series non-adjustable hydraulic shock absorbers are tamperproof, giving consistent performance cycle after cycle, and are designed to absorb maximum energy within a compact envelope. The ECO Series is designed with materials and fluids that are safe for the environment and accommodates a wide range of operating conditions, from low velocity/high drive force to high velocity/low drive force.
Specifications:
| Manufacturer: | Enidine |
| Model: | ECO 15 IF-2B |
| Enidine part number: | BE238412 |
| Series: | ECO |
| Type: | Non-adjustable hydraulic shock absorber |
| Mounting thread: | 7/16-28 |
| Damping constant: | -2 |
| Button: | Yes |
| Stroke: | 0.41 in (10.4 mm) |
| Max. energy per cycle: | 106 in-lbs/cycle (12.0 Nm/cycle) |
| Max. emergency energy per cycle: | 220 in-lbs/cycle (25 Nm/cycle) |
| Max. energy per hour: | 275,000 in-lbs/hour (31 020 Nm/hour) |
| Max. reaction force: | 450 lbs (2 000 N) |
| Nominal coil spring force, extended: | 0.7 lbs (3.0 N) |
| Nominal coil spring force, compressed: | 1.6 lbs (7.0 N) |
| Max. propelling force: | 50 lbs (220 N) |
| Weight: | 2.0 oz (56 g) |
- One hex jam nut is included with every shock absorber.
- The emergency energy rating is for emergency use only; Enidine estimates a cycle life of 1-5 cycles if used at the maximum emergency rating.
Source: Enidine 2026 price list; ratings from the Enidine shock absorber catalogue (p.47).
