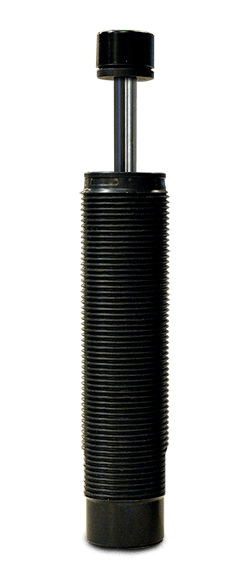

ECO 100 IF-4B Enidine Non-Adjustable Hydraulic Shock Absorber, 1-12 Thread, 1.00 in Stroke, Button
Sku#: ECO 100 IF-4B
Contact us for availability.
Details
More Information
Reviews
The Enidine ECO 100 IF-4B is a non-adjustable hydraulic shock absorber with a 1-12 mounting thread, 1.00 in (25.0 mm) stroke and damping constant -4, button model.
Enidine ECO Series non-adjustable hydraulic shock absorbers are tamperproof, giving consistent performance cycle after cycle, and are designed to absorb maximum energy within a compact envelope. The ECO Series is designed with materials and fluids that are safe for the environment and accommodates a wide range of operating conditions, from low velocity/high drive force to high velocity/low drive force.
Specifications:
| Manufacturer: | Enidine |
| Model: | ECO 100 IF-4B |
| Enidine part number: | BE238464 |
| Series: | ECO |
| Type: | Non-adjustable hydraulic shock absorber |
| Mounting thread: | 1-12 |
| Damping constant: | -4 |
| Button: | Yes |
| Stroke: | 1.00 in (25.0 mm) |
| Max. energy per cycle: | 930 in-lbs/cycle (105.0 Nm/cycle) |
| Max. emergency energy per cycle: | 2210 in-lbs/cycle (250 Nm/cycle) |
| Max. energy per hour: | 681,500 in-lbs/hour (77 000 Nm/hour) |
| Max. reaction force: | 1,250 lbs (5 500 N) |
| Nominal coil spring force, extended: | 3.0 lbs (13.0 N) |
| Nominal coil spring force, compressed: | 6.0 lbs (27.0 N) |
| Max. propelling force: | 500 lbs (2 200 N) |
| Weight: | 10.5 oz (297 g) |
- One hex jam nut is included with every shock absorber.
- The emergency energy rating is for emergency use only; Enidine estimates a cycle life of 1-5 cycles if used at the maximum emergency rating.
Source: Enidine 2026 price list; ratings from the Enidine shock absorber catalogue (p.47).
