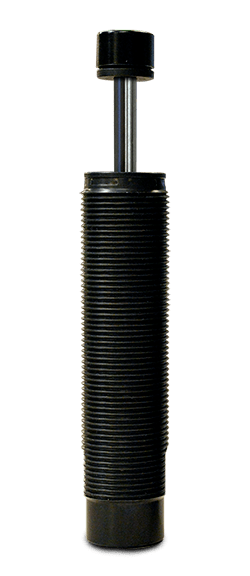

ECO 10 MF-2B Enidine Non-Adjustable Hydraulic Shock Absorber, M10 x 1.0 Thread, 7.0 mm Stroke, Button
Sku#: ECO 10 MF-2B
Contact us for availability.
Details
More Information
Reviews
The Enidine ECO 10 MF-2B is a non-adjustable hydraulic shock absorber with an M10 x 1.0 mounting thread, 0.28 in (7.0 mm) stroke and damping constant -2, button model.
Enidine ECO Series non-adjustable hydraulic shock absorbers are tamperproof, giving consistent performance cycle after cycle, and are designed to absorb maximum energy within a compact envelope. The ECO Series is designed with materials and fluids that are safe for the environment and accommodates a wide range of operating conditions, from low velocity/high drive force to high velocity/low drive force.
Specifications:
| Manufacturer: | Enidine |
| Model: | ECO 10 MF-2B |
| Enidine part number: | BM238402 |
| Series: | ECO |
| Type: | Non-adjustable hydraulic shock absorber |
| Mounting thread: | M10 x 1.0 |
| Damping constant: | -2 |
| Button: | Yes |
| Stroke: | 0.28 in (7.0 mm) |
| Max. energy per cycle: | 62 in-lbs/cycle (7.0 Nm/cycle) |
| Max. emergency energy per cycle: | – in-lbs/cycle (13 640 Nm/cycle) |
| Max. energy per hour: | 120,700 in-lbs/hour (1 600 Nm/hour) |
| Max. reaction force: | 360 lbs (2.2 N) |
| Nominal coil spring force, extended: | 0.5 lbs (4.5 N) |
| Nominal coil spring force, compressed: | 1.0 lbs (350 N) |
| Max. propelling force: | 80 lbs (28 N) |
- One hex jam nut is included with every shock absorber.
- The emergency energy rating is for emergency use only; Enidine estimates a cycle life of 1-5 cycles if used at the maximum emergency rating.
Source: Enidine 2026 price list; ratings from the Enidine shock absorber catalogue (p.47).
