Details

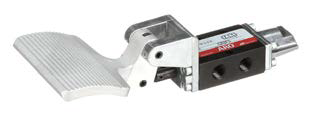

The ARO E212FS is a 2 Position Detent, 4 Way Side Ported, 1/4" NPT Pedal/Spring Valve.
Features:
Several Styles and Options
- 3-Way or 4-Way Configurations. 2- and 3-position configurations.
Numerous Actuator Styles
Manual Mechanical Electric Pneumatic Hand Lever Cam Stern Single Solenoid Pilot Palm Button Roller Cam Double Solenoid Bleed Pedal Treadle Performance Features
- Buna-N spool seals are standard. Viton seals are available for high temperature applications. Contact Scott Equipment Company for ordering information.
- The E Series Valve has a low profile. An extruded aluminum body provides excellent durability and lighter weight.
- An external solenoid supply port allows service in low pressure applications. This requires a #116153 plug kit.
Solenoid Override
- Manual locking override is standard on solenoid models. Turn override to operate.
- Solenoid overrride is a convenient means to set-up and trouble shoot circuits. Air pressure at the solenoid exhaust will also override the solenoid.
Performance Specifications
Flow: 26 SCFM Cv Factor: .70 Cv Temperature Ratings: -10° to 180°F (-23° to 82° C) Weight: Solenoid Valves 1.8 to 3.4oz (.82 to 1.5 g)
Non-Solenoid Valves .7 to 1.3ox (.32 to .6 g)
Lubrication: Valve use O-ring seals. For maximum performance and life expectancy, standard air line lubrication should be used
-
Additional Information
Part Number E212FS Brand Aro Fluid Products Pack Size 1.0000 UOM EA Lead time (Historical if not in stock) 0 Lead Days Product Type Valve - Manual Operating Fluid Air Fluid Power Type Pneumatic Max Operating Pressure 150psi Port Size NPT 1/4" Actuation 1 (2 Position Single) -
