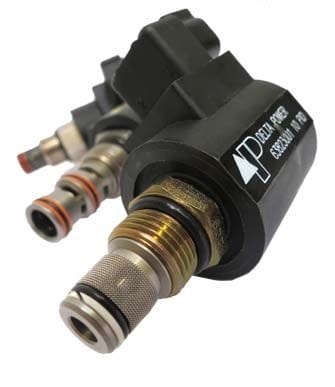

DG-S4M-00 Delta Power Company Solenoid Operated Spool Valve
Sku#: DG-S4M-00
DESCRIPTION: 10 size, 7/8-14 thread, "Delta" Series, solenoid operated, 4 way 3 position, motor center spool valve.

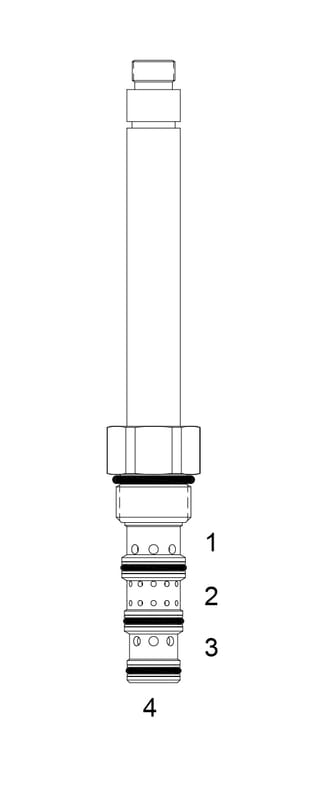

OPERATION: When de-energized teh DG-S4M block the flow at (2) and allows flow between (1), (3) and (4). When outer coii (S1) is energized the valve allows flow from (2) to (1) and from (3) to (4). When inner coil (S2) is energized the valve allows flow from (2) to (3) and from (1) to (4).
OPERATION OF MANUAL OVERRIDE OPTION: Biderectional Override - Spring biased in neutral center position, when pushed the valve shifts in the (S2) direction, when pulled the valve shifts in the (S1) direction.
Push Only Override - Spring biased in neutral center position, when pushed the valve shifts in the (S2) direction.
FEATURES:
- Hardened parts for long life.
- Efficient wet-amature construction.
- Cartridges are voltage interchaneable.
- Manual override option.
- Industry common cavity.
- Unitized, molded coild design.
- Continuous duty rated solenoid.

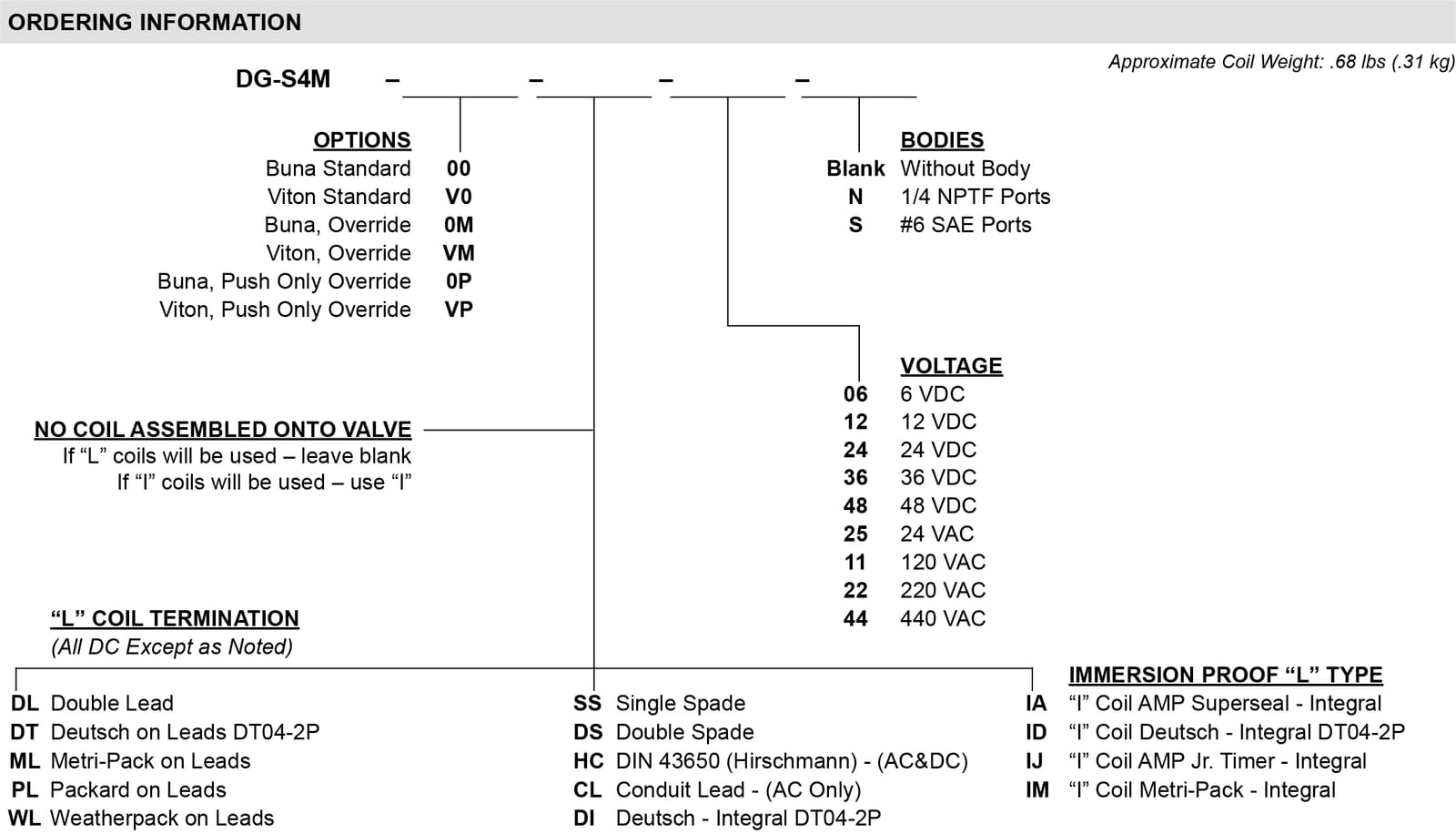

- Optional coild voltages and terminations.
- Optional "I" Coil: Weatherproof, Thermal Shock, Immersion Safe.
