DE-S2C-00 Delta Power Company 2-Way Normally Open Pilot Operated Poppet Valve
Sku#: DE-S2C-00
Contact us for availability.
Details
More Information
Reviews

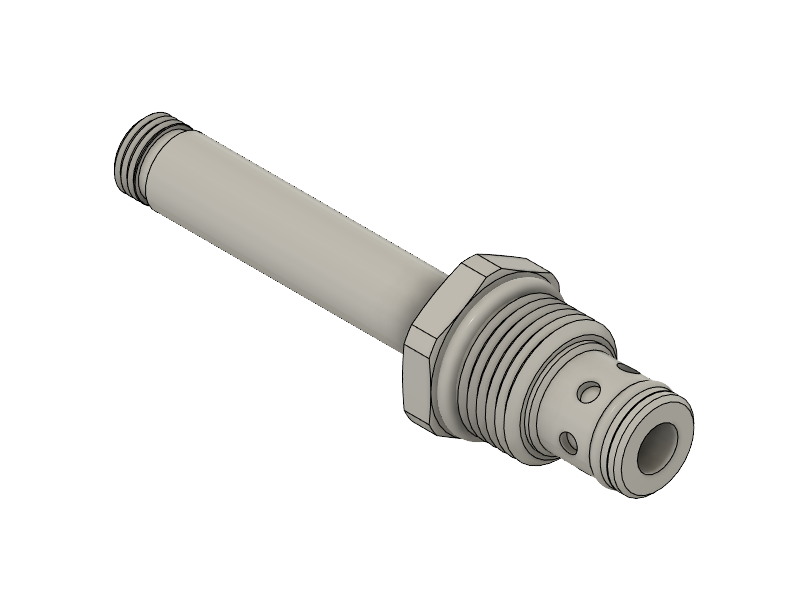

The Delta Power Company DE-S2C is a 10 size, 7/8-14 thread, "Delta" series solenoid operated 2-way, normally open pilot operated poppet valve with free reverse flow energized.
OPERATION
When de-energized the DE-S2C allows flow to pass from (1) to (2), but restricts flow from (2) to (1). When energized the valve blocks flow from (1) to (2) but allows free reverse flow from (2) to (1).
OPERATION OF MANUAL OVERRIDE OPTION: to override, turn the manual override screw clockwise.To release turn the manual override screw counterclockwise.
FEATURES
- Hardened parts for long life
- Efficient wet-armature construction
- Cartidges are voltage interchangeable
- Manual overide option
- Industry common cavity
- Unitized, molded coild design
- Continuous duly rated solenoid
- Optional coil voltages and terminations
- Optional "I" Coil: Weatherproof, Thermal Shock, Imersion Safe
