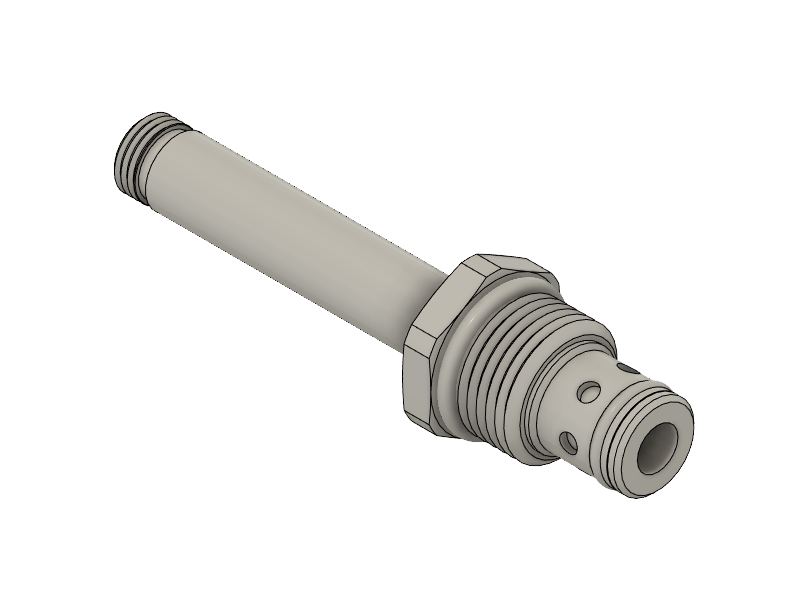

DE-S2A-00 Delta Power Company 2-Way Normally Closed Pilot Operated Poppet Valve

The Delta Power Company DE-S2A is a 10 size, 7/8-14 thread, "Delta" series solenoid operated, 2-way normally closed, pilot operated poppet valve with free reverse flow energized.

OPERATION

When de-energized the DE-S2A blocks flow from (1) to (2) and allows reverse flow from (2) to (1). When energized the valve allows flow from (1) to (2) and restricts flow from (2) to (1).

OPERATION OF MANUAL OVERRIDE OPTION: to override, turn the manual override screw clockwise.To release turn the manual override screw counterclockwise.

FEATURES

• Hardened parts for long life
• Efficient wet-armature construction
• Cartidges are voltage interchangeable
• Manual overide option
• Industry common cavity
• Unitized, molded coild design
• Continuous duly rated solenoid
• Optional coil voltages and terminations
• Optional "I" Coil:  Weatherproof, Thermal Shock, Imersion Safe

Delta Power Company DE-S2A Specification Manual (Click Here)
