DE-FCH-00 Delta Power Company Adjustable Flow Control
Sku#: DE-FCH-00
Contact us for availability.
Details
Resources
More Information
Reviews
DESCRIPTION: 10 size, 7/8-14 thread, "Delta" adjustable needle flow control valve with free reverse flow.

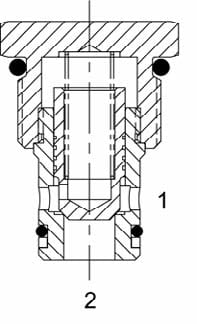

OPERATION: The DE-FCH increases its orifice value from fully closed to fully open by turning screw counterclockwise. When adjusted open the valves regulates flow (1) to (2). When Fully closed the valve restricts flow from (1) to (2).
FEATURES:
- Hardened parts for long life.
- Industry common cavity.
| VALVE SPECIFICATIONS | |
| Nominal Flow | 12 GPM (45 LPM) |
| Rated Operating Pressure | 3500 PSI (241 bar) |
| Filtration | ISO 18/16/13 |
| Media Operating Temp. Range | -40° to 250°F (-40° to 120°C) |
| Weight | .32 lbs (.15 kg) |
| Operating Fluid Media | General Purpose Hydraulic Fluid |
| Cartridge Torque Requirements | 30 ft-lbs (40.6Nm) |
| Cavity | DELTA 2W |
| Cavity Form Tool (Finishing) | 40500000 |
| Seal Kit | 21191200 |
