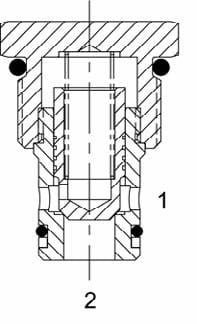

DESCRIPTION: 10 size, 7/8-14 thread, "Delta" series, direct acting check valve OPERATION: The DE-CVA allows free flow passage from (2) to (1), and blocks flwo from (1) to (2). The cartridge has a fully guided check poppet, which is spring-biased closed, until sufficient pressure is applied at (2) to open to (1).
FEATURES:
- Hardened parts for long life and low leakage.
- Optional bias springs for backpressrue application flexibility.
- Fully guided poppet assembly.
- Industry common cavity.
VALVE SPECIFICATIONS Nominal Flow 15 GPM (57 LPM) Rated Operating Pressrue 3500 PSI (241 Bar) Typical Internal Leakage (150 SSU) 0-5 drops/min Viscosity Range 36 to 3000 SSU (3 to 647 cSt) Filtration ISO 18/16/13 Media Operating Temp. Range -40° to 250°F (-40° to 120°C) Weight .15 lbs (.07 kg) Operating Fluid Media General Purpose Hydraulic Fluid Cartridge Torque Requirements 30 ft-lbs (40.6Nm) Cavity DELTA 2W Cavity from Tool (Finishing) 40500000 Seal Kit 21191200
-
Additional Information

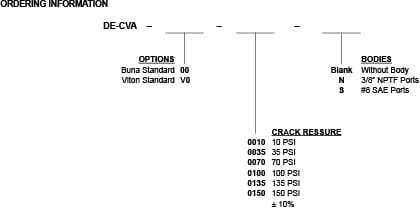

Part Number DE-CVA-00-0010 Brand Delta Power Company Pack Size 1.0000 UOM EA Lead time (Historical if not in stock) 178.000000000 Lead Days Product Type Hydraulic Cartridge Valve Cartridge Type Check Valve Cavity DELTA 2W Cavity Form Tool 40500000 Operation Direct Acting Rated Operating Pressure 3500 PSI Seals Buna Cavity Thread 7/8-14 Thread CartridgeSize 10 Size Nominal Flow 15 GPM -
