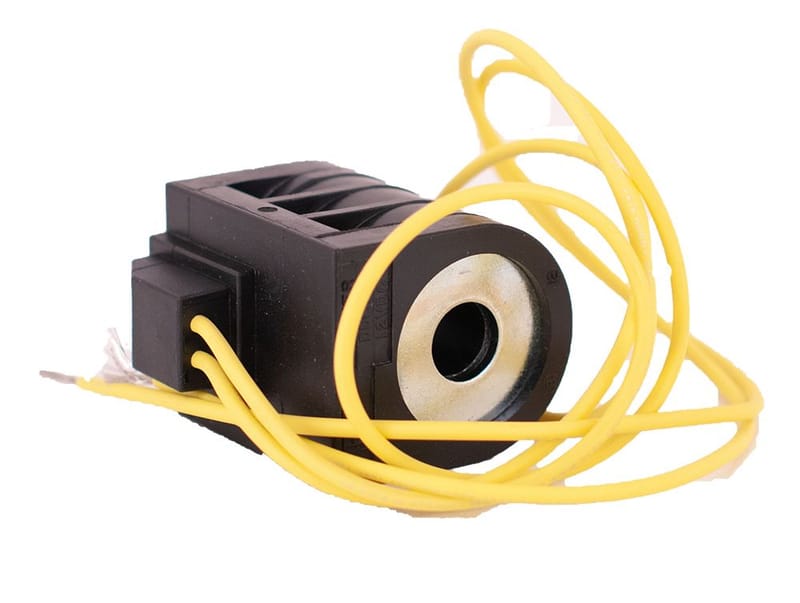

DDL12 Delta Power Company Standard "D" Type Coil

Sku#: DDL12

Contact us for availability.
The Delta Power Copmany DDL12 standard "D" type coil is a one piece encapsulated coil with a double lead termination and is rated for 12 VDC.

Delta Power Company Standard D-Type coil with a 1/2" I.D.

Features:

  • One piece water resistant encapsulatred design
  • Numerous terminals and voltages
  • Heavy gauge color coded lead wire
  • Reversible coil (can be installed on cartridges in both directions with equal efficiency).
BASIC MODEL NO. TERMINATION VOLTAGE

D-Type One Piece

Encapsulated Coil

 DL Double Lead 06 6VDC
DT Deutsch on Leads DT04-2P, mates w/DT06-2S 12 12VDC
DI Deutsch - Integral DT04-2P, mates w/DT06-2s 24 24VDC
ML Metri-Pack 150 Series on Leads (12162000), mates w/12052641 36 36VDC
PL Packard on Leads (12015792), mates w/12015792 48 48VDC
WL Weather-Pack on Leads (12010973), mates w/12015792 25 24VAC
Al Amp Superseal 1.5 on Leads (282104.1), mates w/Amp 282080.1 & Metri-pack 12052641 11 110VAC
SS Single Spade 13 125VAC
DS Double Spade 22 220VAC
HC DIN 43650 (Hirschman) - (AC/DC) 23 250VAC
CL Conduit Lead (AC ONLY) 44 440VAC
22 WATT STD. COIL

Specifications:

Wattage:  22 watts nominal

Duty Rating:  Continuous duty +/- 10% rated voltage at 120°F (49°C) ambient

Minimum current for actuation:  80% of rated current at room temperature

Magnet Wire Class:  N for all voltages

Temperature Range:  -40°F (-40°C) to 392°F (200°C)

Lead Wires:  18 gauge, 24" long, 600 Volt rating, with strain relief

Encapsulating Material:  glass filled polyester, resistant to moisture, caustic solutions, fungus and vibration.  Material temperature range is -40° (-40°C) to 392° (200°C)

Color Identifiction:   black

Delta Power Company D-Type, 12 VDC, Double Lead
