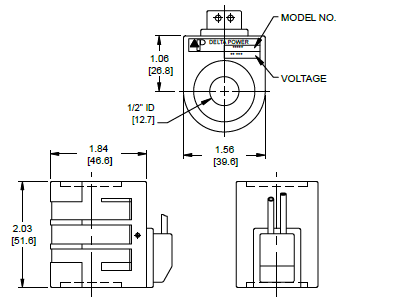

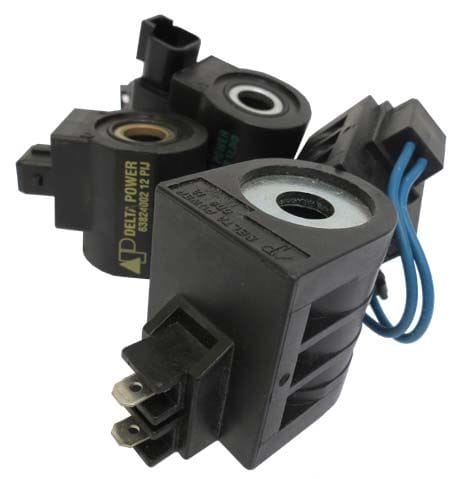

DCL11 Delta Power Company Solenoid Coil
Sku#: DCL11
DESCRIPTION:
Standard coil data D-Type coil with 1/2" I.D.
FEATURES:
One piece water resistant encapsulated design.
Numerous termainals and voltages.
Heavy gauge color colded lead wire.
Reversible coil (can be installed on cartridges in both directions with equal efficiency).
NOTE: For coil selection in extreme conditions, please look at Delta Power Company's "I" coil line of envrionmental coils.
| BASIC MODEL NO. | TERMINATION | VOLTAGE |
|
D-Type One Piece Encapsulated Coil |
DL Double Lead | 06 6VDC |
| DT Deutsch on Leads DT04-2P, mates w/DT06-2S | 12 12VDC | |
| DI Deutsch - Integral DT04-2P, mates w/DT06-2s | 24 24VDC | |
| ML Metri-Pack 150 Series on Leads (12162000), mates w/12052641 | 36 36VDC | |
| PL Packard on Leads (12015792), mates w/12015792 | 48 48VDC | |
| WL Weather-Pack on Leads (12010973), mates w/12015792 | 25 24VAC | |
| Al Amp Superseal 1.5 on Leads (282104.1), mates w/Amp 282080.1 & Metri-pack 12052641 | 11 110VAC | |
| SS Single Spade | 13 125VAC | |
| DS Double Spade | 22 220VAC | |
| HC DIN 43650 (Hirschman) - (AC/DC) | 23 250VAC | |
| CL Conduit Lead (AC ONLY) | 44 440VAC | |
| 22 WATT STD. COIL | ||
SPECIFICATIONS
WATTAGE: 22 watts nominal.
DUTY RATING: continuous duty +/- 10% rated voltage at 120°F (49°C) ambient.
MINIMUM CURRENT FOR ACTUATION: 80% of rated current at room temperature.
MAGNET WIRE CLASS: N for all voltages.
TEMPERATURE RANGE: -40°F (-40°C) to 392°F (200°C).
LEAD WIRES: 18 gauge, 24" long, 600 Volt rating, with strain relief.
ENCAPSULATING MATERIAL: glass filled polyester, resistant to moisture, caustic solutions, fungus and vibration.
COLOR INDENTIFICATION: black
NOTE: Delta Power A.C. Coils incorporate integrally molded full wave rectifiers which are rated for reverse voltage peaks of 1000
volts maximum.
A.C. Coils are rated 50/60 HZ.
* Optimum operating voltage noted.
Conduit connectors on A.C. coils have a maximum torque spec of 3 Ft. Lbs.
Arc Suppression Diode Available
