D6C0MFL NGT 3/8 NPTF Dual Pilot-Operated Check Valve with Flow Controls, Manual Release
Sku#: D6C0MFL
Contact us for availability.
Details
More Information
Reviews

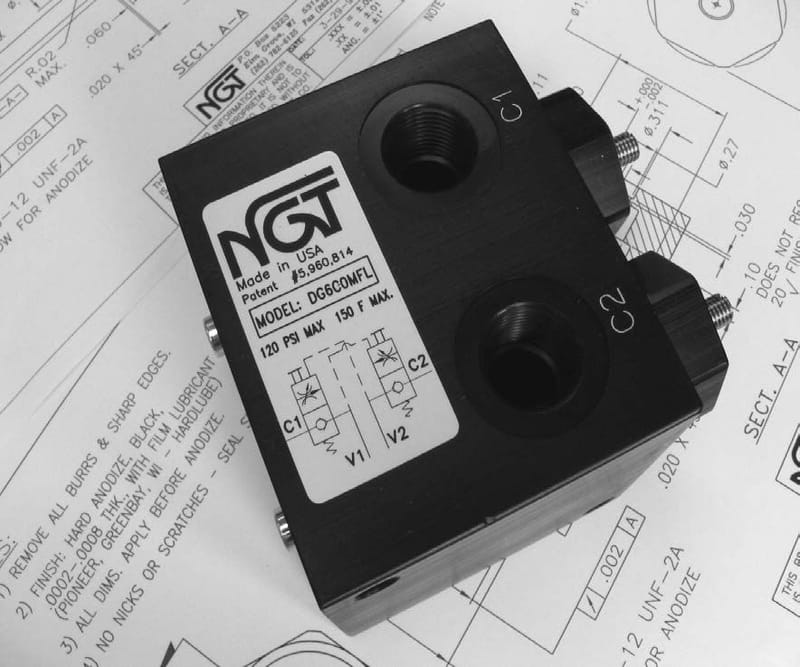

The NGT D6C0MFL is a 3/8 NPTF dual pilot-operated check valve with flow controls and a manual release.
Basic Operation:
In the event of a pressure loss this valve maintains cylinder position by locking air in both cylinder ports. The internal flow controls meter air out of the cylinder. A manual release is available to release trapped air from both ports independently.
- Dual Manual Release
- .0000522 cc/min Leak Rate
- G3/8 BSPP Available
- Lower Loads Slowly
Operating Data:
| Max. Pressure: | 150 psi |
| Min. Pilot Pressure: | 40 psi |
| Advance & Retract Ratio: | The pressure ratio of advance/retract or retract/advance should not be greater than 2 |
| Temperature Range: | -20 - 150 F |
| Cycle Rate: | 1 cyc./sec. max. |
| Flow Capacity (Cv): | 3.8 |
| Cracking Pressure: | 1 - 2 psi |
| Service: | Properly filtered dry air or lubricated air |
Available Models:
| Model No. | No Manual Release | Manual Release | Flush Manual Release |
|---|---|---|---|
| 3/8 NPTF | D6C00FL | D6C0MFL | D6CFMFL |
| 3/8 BSPP | DG6C00FL | DG6C0MFL | DG6CFMFL |
| 1/2 NPTF | D8C00FL | D8C0MFL | D8CFMFL |
| For 25 psi pilot pressure add (-K18) to the model # (ex. D6C0MFL-K18). | |||
