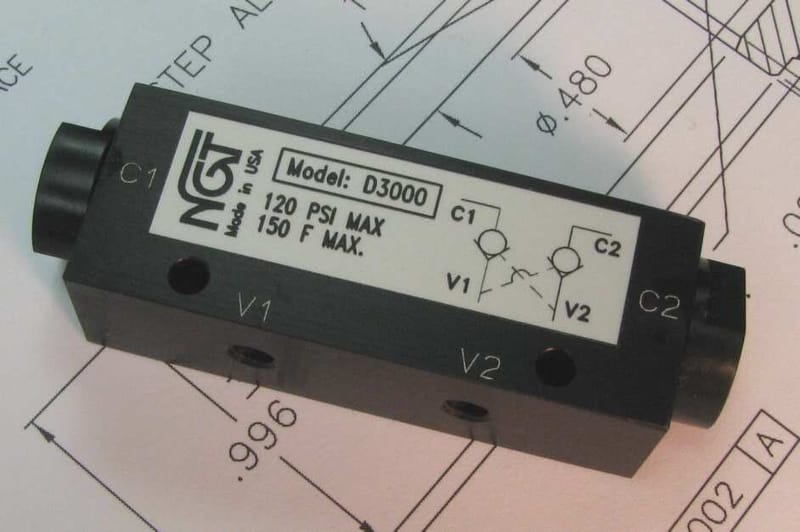

D3000 NGT 10-32 Miniature Dual Check Valve

Sku#: D3000

Contact us for availability.
The NGT D3000 is a 10-32 miniature dual check valve. In the event of a pressure loss this valve maintains cylinder position by locking air in both cylinder ports, eliminating drift due to leaky spool valves.

The NGT D3000 is a 10-32 miniature dual check valve.

Basic Operation:

In the event of a pressure loss this valve maintains cylinder position by locking air in both cylinder ports, eliminating drift due to leaky spool valves.

  • Air Tight Locking
  • Small Package
  • Faster Stops
  • Less Bounce

Operating Data:

Min. / Max. Pressure: 25 - 120 psi
Temperature Range: 30 - 150 F
Cycle Rate: 1 cyc./sec. max.
Flow Capacity (Cv): .25
Cracking Pressure: 1 - 2 psi
Service: Properly filtered dry air or lubricated air

Available Models:

Model No.10-32 Ports
10-32 D3000
