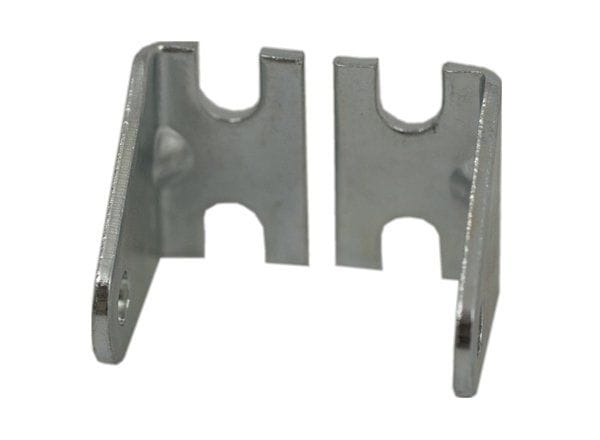

D-229 Bimba Standard Round Line Pivot Bracket

mba standard round line pivot brackets can increase the life of pneumatic cylinders when done properly. Most cylinders should be mounted by the threaded stud ends, pivot or bolt holes provided. Mounting cylinders provides alignment with the driven mechanism, avoiding side loads that restrict the free operation of the cylinder. Double end mounting recommended for longer strokes High strength zinc coated carbon steel Precision machined ISO 9001 Certified Contact Bimba for custom pivot brackets All accessories include necessary hardware
