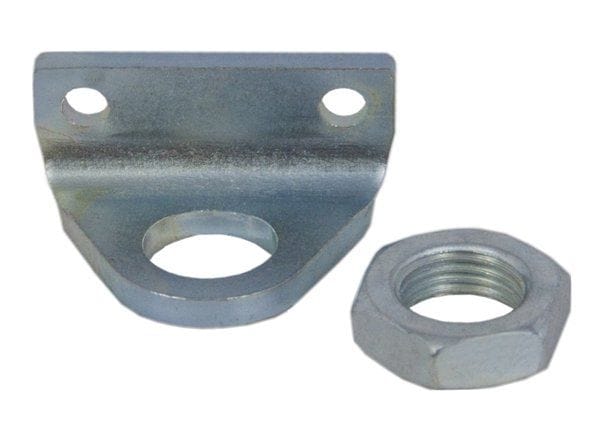

D-226 Bimba Round Line Foot Bracket

Sku#: D-226

Contact us for availability.
Bimba round line foot brackets can increase the life of pneumatic cylinders when done properly. Most cylinders should be mounted by the threaded stud ends, pivot or bolt holes provided. Mounting cylinders provides alignment with the driven mechanism, avoiding side loads that restrict the free operation of the cylinder.

mba round line foot brackets can increase the life of pneumatic cylinders when done properly.  Most cylinders should be mounted by the threaded stud ends, pivot or bolt holes provided.  Mounting cylinders provides alignment with the driven mechanism, avoiding side loads that restrict the free operation of the cylinder.

  • Double end mounting recommended for longer strokes
  • High strength zinc coated carbon steel
  • Precision machined
  • ISO 9001 Certified
  • Contact Bimba for custom foot brackets
  • All accessories include necessary hardware
