CR5-100S Enidine Compact Wire Rope Isolator, Standard Thru Hole

The Enidine CR5-100S is a compact wire rope isolator, standard thru hole.

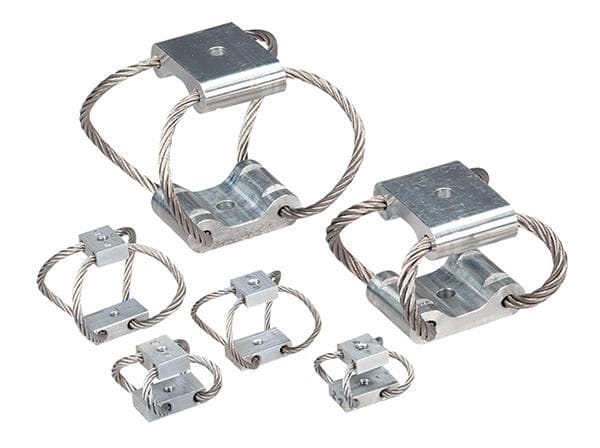

Enidine compact wire rope isolators are smaller than a traditional wire rope helical isolator and absorb shock and vibration in small spaces; single point mounting gives flexibility for integration into existing products.

Specifications:

Manufacturer:	Enidine
Model:	CR5-100S
Enidine part number:	CR5100S
Series:	CR
Type:	CR5-100-S STANDARD THRU HOLE
Catalog model:	CR5-100
Wire rope (cable) diameter:	Ø0.156 (4,0) (Ref)
Height "H" in. (mm):	1.60 (41)
Height tolerance in. (mm):	± .06 (± 1,52)
Width "W" (Ref) in. (mm):	1.89 (48)
Unit weight oz. (g):	1.6 (45)
Mounting option:	S: Thru / Thru (top / bottom bar)
Mounting options available for this size:	A, B, C, D, E, S
Thru hole in. (mm):	Ø.230 (Ø7,00)
Max recommended torque:	40 in.-lbs. (7,5 Nm) (tapped aluminum bar)
Operating temperature range:	-150°F to 500°F (-100°C to 260°C)
Compression - Max Static Load Lbs. (N):	18 (80)
Compression - Max Deflection in. (mm):	0.77 (19,6)
Compression - Kv (vibration) Lbs./in. (kN/m):	125 (22)
Compression - Ks (shock) Lbs./in. (kN/m):	65 (11)
45° Compression/Roll - Max Static Load Lbs. (N):	5.5 (24)
45° Compression/Roll - Max Deflection in. (mm):	0.72 (18,3)
45° Compression/Roll - Kv (vibration) Lbs./in. (kN/m):	70 (12)
45° Compression/Roll - Ks (shock) Lbs./in. (kN/m):	35 (6,1)
Shear/Roll - Max Static Load Lbs. (N):	4.5 (20)
Shear/Roll - Max Deflection in. (mm):	0.65 (16,5)
Shear/Roll - Kv (vibration) Lbs./in. (kN/m):	25 (4,4)
Shear/Roll - Ks (shock) Lbs./in. (kN/m):	25 (4,4)

• Note: Do not extrapolate plotted curves.

Source: Enidine 2026 price list; specifications from the Enidine wire rope isolator catalogue (CR5 series, printed page 47 (dimensions), 48 (performance)); enidine.com, Compact Wire Rope Isolators.
