CR4-200B Enidine Compact Wire Rope Isolator, Countersunk Hole

The Enidine CR4-200B is a compact wire rope isolator, countersunk hole.

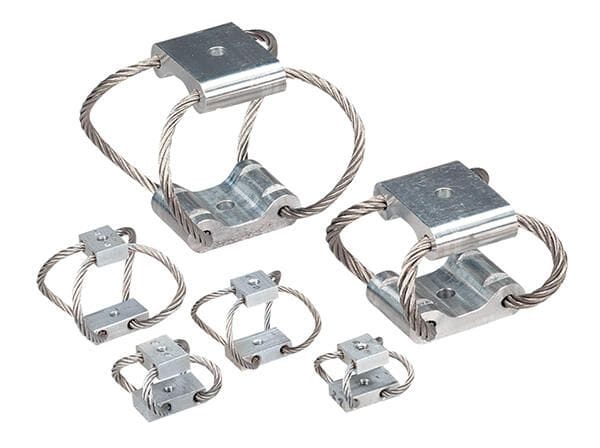

Enidine compact wire rope isolators are smaller than a traditional wire rope helical isolator and absorb shock and vibration in small spaces; single point mounting gives flexibility for integration into existing products.

Specifications:

Manufacturer:	Enidine
Model:	CR4-200B
Enidine part number:	CR4200B
Series:	CR
Type:	CR4-200-B COUNTERSUNK HOLE
Catalog model:	CR4-200
Wire rope (cable) diameter:	Ø0.125 (3,2) (Ref)
Height "H" in. (mm):	2.10 (53)
Height tolerance in. (mm):	± .06 (± 1,52)
Width "W" (Ref) in. (mm):	2.12 (54)
Unit weight oz. (g):	1.4 (40)
Mounting option:	B: C'sink / C'sink (top / bottom bar)
Mounting options available for this size:	A, B, C, D, E, S
Thru hole in. (mm):	Ø.230 (Ø7,00)
C'sink Imperial (Metric):	82° (90°)
Max recommended torque:	40 in.-lbs. (7,5 Nm) (tapped aluminum bar)
Operating temperature range:	-150°F to 500°F (-100°C to 260°C)
Compression - Max Static Load Lbs. (N):	4.0 (18)
Compression - Max Deflection in. (mm):	1.17 (29,7)
Compression - Kv (vibration) Lbs./in. (kN/m):	35 (6,0)
Compression - Ks (shock) Lbs./in. (kN/m):	14 (2,5)
45° Compression/Roll - Max Static Load Lbs. (N):	1.5 (6,7)
45° Compression/Roll - Max Deflection in. (mm):	1.16 (29,5)
45° Compression/Roll - Kv (vibration) Lbs./in. (kN/m):	18 (3,1)
45° Compression/Roll - Ks (shock) Lbs./in. (kN/m):	6 (1,1)
Shear/Roll - Max Static Load Lbs. (N):	1.6 (7,1)
Shear/Roll - Max Deflection in. (mm):	1.04 (26,4)
Shear/Roll - Kv (vibration) Lbs./in. (kN/m):	6 (1,1)
Shear/Roll - Ks (shock) Lbs./in. (kN/m):	6 (1,1)

• Note: Do not extrapolate plotted curves.

Source: Enidine 2026 price list; specifications from the Enidine wire rope isolator catalogue (CR4 series, printed page 45 (dimensions), 46 (performance)); enidine.com, Compact Wire Rope Isolators.
