CR4-100C Enidine Compact Wire Rope Isolator, Threaded/Thru Hole

The Enidine CR4-100C is a compact wire rope isolator, threaded/thru hole.

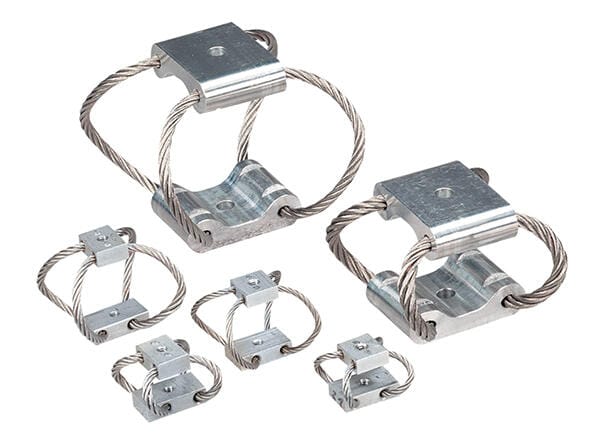

Enidine compact wire rope isolators are smaller than a traditional wire rope helical isolator and absorb shock and vibration in small spaces; single point mounting gives flexibility for integration into existing products.

Specifications:

Manufacturer:	Enidine
Model:	CR4-100C
Enidine part number:	CR4100C
Series:	CR
Type:	CR4-100-C THREADED/THRU HOLE
Catalog model:	CR4-100
Wire rope (cable) diameter:	Ø0.125 (3,2) (Ref)
Height "H" in. (mm):	1.66 (42)
Height tolerance in. (mm):	± .06 (± 1,52)
Width "W" (Ref) in. (mm):	1.87 (47)
Unit weight oz. (g):	1.4 (40)
Mounting option:	C: Thru / Thread (top / bottom bar)
Mounting options available for this size:	A, B, C, D, E, S
Thru hole in. (mm):	Ø.230 (Ø7,00)
Thread in. (mm):	#10-32 UNF (M6 X 1,0)
Max recommended torque:	40 in.-lbs. (7,5 Nm) (tapped aluminum bar)
Operating temperature range:	-150°F to 500°F (-100°C to 260°C)
Compression - Max Static Load Lbs. (N):	5.5 (24)
Compression - Max Deflection in. (mm):	0.77 (19,6)
Compression - Kv (vibration) Lbs./in. (kN/m):	70 (12)
Compression - Ks (shock) Lbs./in. (kN/m):	33 (5,8)
45° Compression/Roll - Max Static Load Lbs. (N):	2.5 (11)
45° Compression/Roll - Max Deflection in. (mm):	0.76 (19,3)
45° Compression/Roll - Kv (vibration) Lbs./in. (kN/m):	37 (6,4)
45° Compression/Roll - Ks (shock) Lbs./in. (kN/m):	16 (2,8)
Shear/Roll - Max Static Load Lbs. (N):	1.9 (8,5)
Shear/Roll - Max Deflection in. (mm):	0.68 (17,3)
Shear/Roll - Kv (vibration) Lbs./in. (kN/m):	11 (1,9)
Shear/Roll - Ks (shock) Lbs./in. (kN/m):	11 (1,9)

• Note: Do not extrapolate plotted curves.

Source: Enidine 2026 price list; specifications from the Enidine wire rope isolator catalogue (CR4 series, printed page 45 (dimensions), 46 (performance)); enidine.com, Compact Wire Rope Isolators.
