CR2-300D Enidine Compact Wire Rope Isolator, Threaded Hole

The Enidine CR2-300D is a compact wire rope isolator, threaded hole.

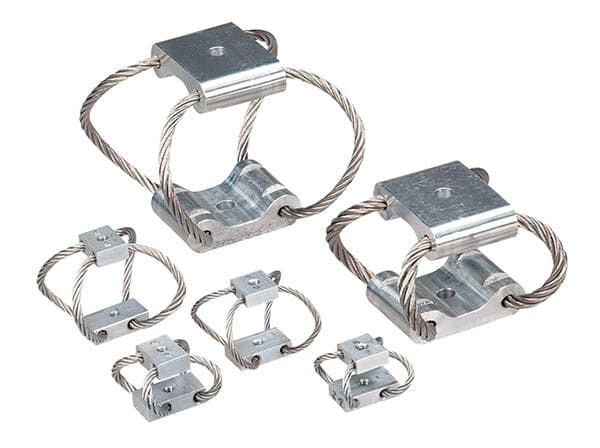

Enidine compact wire rope isolators are smaller than a traditional wire rope helical isolator and absorb shock and vibration in small spaces; single point mounting gives flexibility for integration into existing products.

Specifications:

Manufacturer:	Enidine
Model:	CR2-300D
Enidine part number:	CR2300D
Series:	CR
Type:	CR2-300-D THREADED HOLE
Catalog model:	CR2-300
Wire rope (cable) diameter:	Ø.062 (1,6) (Ref)
Height "H" in. (mm):	0.89 (23)
Height tolerance in. (mm):	± .06 (± 1,52)
Width "W" (Ref) in. (mm):	0.94 (24)
Unit weight oz. (g):	0.15 (4,3)
Mounting option:	D: Thread / Thread (top / bottom bar)
Mounting options available for this size:	A, B, C, D, E, S
Thread in. (mm):	#4-40 UNC (M3 X 0,5)
Max recommended torque:	10 in.-lbs. (1,2 Nm) (tapped aluminum bar)
Operating temperature range:	-150°F to 500°F (-100°C to 260°C)
Compression - Max Static Load Lbs. (N):	1.5 (6,7)
Compression - Max Deflection in. (mm):	0.46 (11,7)
Compression - Kv (vibration) Lbs./in. (kN/m):	30 (5,3)
Compression - Ks (shock) Lbs./in. (kN/m):	11 (1,9)
45° Compression/Roll - Max Static Load Lbs. (N):	0.75 (3,3)
45° Compression/Roll - Max Deflection in. (mm):	0.57 (14,5)
45° Compression/Roll - Kv (vibration) Lbs./in. (kN/m):	18 (3,2)
45° Compression/Roll - Ks (shock) Lbs./in. (kN/m):	6 (1,0)
Shear/Roll - Max Static Load Lbs. (N):	0.65 (2,9)
Shear/Roll - Max Deflection in. (mm):	0.51 (13,0)
Shear/Roll - Kv (vibration) Lbs./in. (kN/m):	6 (1,1)
Shear/Roll - Ks (shock) Lbs./in. (kN/m):	6 (1,1)

• Note: Do not extrapolate plotted curves.

Source: Enidine 2026 price list; specifications from the Enidine wire rope isolator catalogue (CR2 series, printed page 41 (dimensions), 42 (performance)); enidine.com, Compact Wire Rope Isolators.
