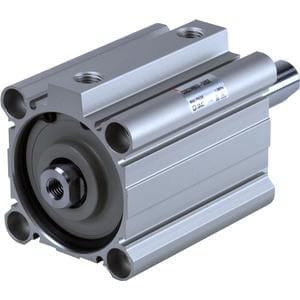

CQ2WB80TF-10DZ SMC Compact Double Acting Cylinder

Sku#: CQ2WB80TF-10DZ

Contact us for availability.
The SMC CQ2WB80TF-10DZ compact double acting cylinder has an 80mm bore size and a 10mm stroke. The CQ2WB80TF-10DZ cylinder has a G 32-100 Bore port thread type with standard mounting and a standard (rod end female thread) body.

Standard double acting, double rod version of the SMC CQ2 compact cylinder. The SMC CQ2 is available in bore sizes from 12mm to 100mm. It comes standard with male or female piston rod threads. It is possible to mount auto switches on any of the 4 surfaces.

  • Double acting, double rod, compact cylinder
  • Bore sizes (mm):  12, 16, 20, 25, 32, 40, 50, 63, 80, 100
  • Standard stroke range (mm):  5 to 100
  • Port threads: M (12 to 25 bore); Rc, NPT or G (32 to 100 bore)
  • Auto switch capable
