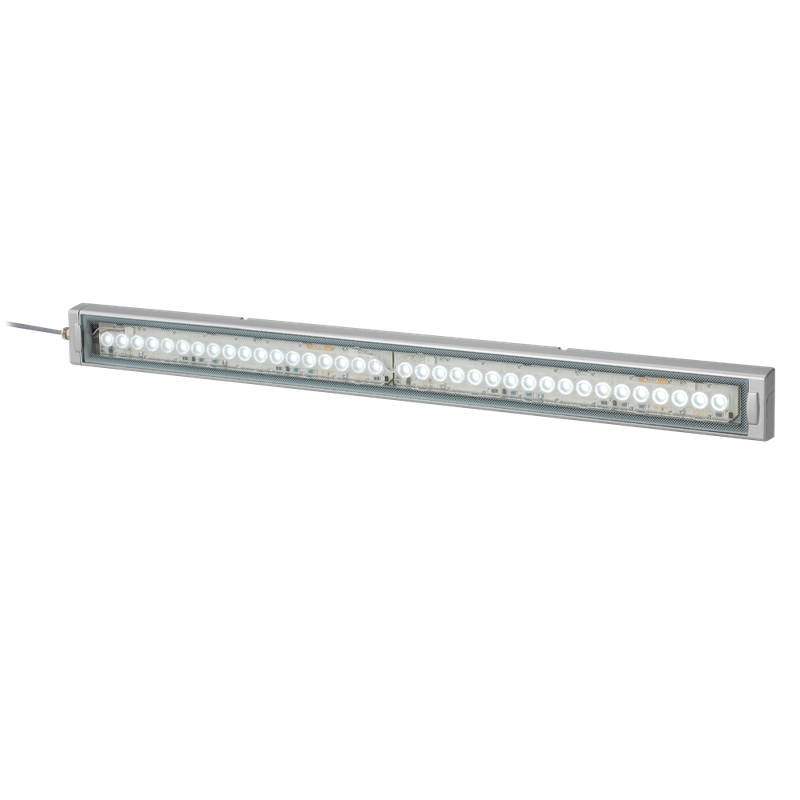

CLK6S-24AG-CD PATLITE LED Light Bar
Sku#: CLK6S-24AG-CD
Contact us for availability.
Details
More Information
Reviews
The PATLITE CLK6S-24AG-CD LED light bar is has a rugged design that is built to withstand harsh conditions.
- High water, oil, chemical resistance; IP69K options
- Flexible body/lens options available
- M12 quick disconnect with Daisy Link compatibility
- Available lengths - 200mm, 300mm, 600mm
Specifications:
| Primary Application | Machine Tooling, Equipment Lighting, Food, Medicine, Chemical |
| Extra Description | Focused Light, Robust |
| Sizes | 200, 300, 600mm |
| Environment Rating | IP66G, 67G,69K |
| Environment | Water and Oil Resistant, Chemical Resistant, High Temperature, High Pressure Washdown |
| Housing | Aluminum Alloy or Stainless Steel |
| Window | Tempered or Acrylic Glass |
| Certifications | UL, CUL, CE, ROHS |
| Voltage | 24 VDC |
| Operating Temperature Range | -40C to 60C |
| Mounting Options | Direct, Flush and Swivel with Optional Bracket |
| Lumens | 865 - 2600 LM |
| Lighting Color Options | Daylight White |
| Lighting Temperature | 6500k |
| Cable | Side Exiting, M12, DaisyLink |
| Vibration Resistance | 19.6 M/S |
