CLK6C-24AG-CD PATLITE LED Light Bar

Sku#: CLK6C-24AG-CD

Contact us for availability.

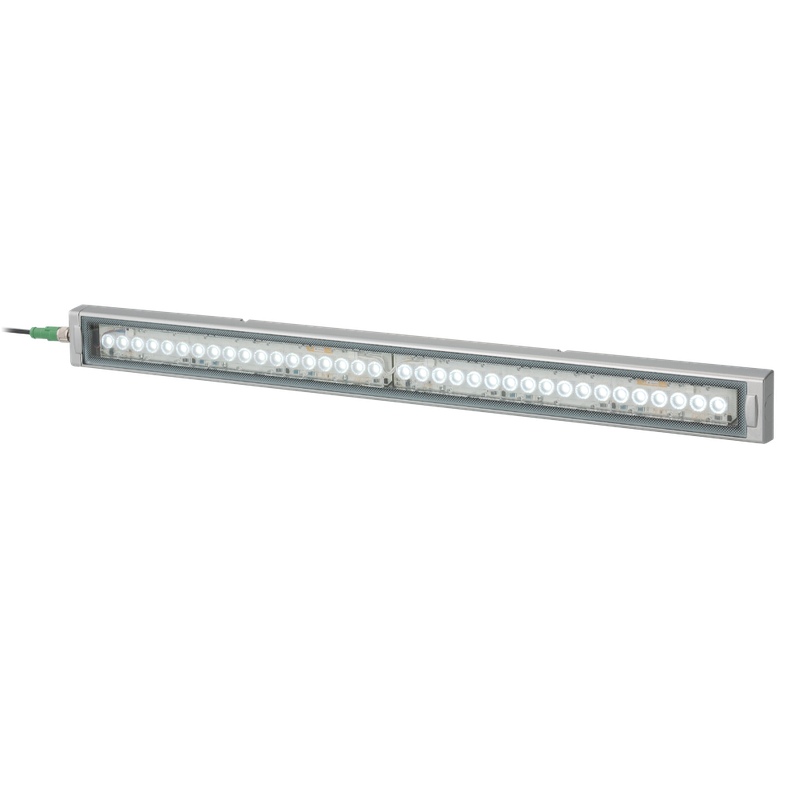

The PATLITE CLK6C-24AG-CD LED Light Bar is 600mm long with a M12Connector. The CLK6C-24AG-CD has an aluminum body with tempered glass and a daylight luminous color.

The PATLITE CLK6C-24AG-CD LED light bar is has a rugged design that is built to withstand harsh conditions.

  • Impervous to Water, Oil, and Chemicals
  • Includes PATLITE's own 'Micro-array Lens" design to even out light distribution
  • Available iin three lengths of 200mm, 300mm and 600mm
  • Three different Body and Lens Material combinations available
  • Uses the popular M12 Quick Disconnect
  • Can connect in series with Daisy Links (Using M12 Connectors)

Specifications:

DIMENSIONS
  • 200mm
  • 300mm
  • 600mm
RATED VOLTAGE
  • 24V DC (Poloarized)
BODY STYLE
  • M12 Quick Disconnect Series
  • M12 Daisy Link Quick Disconnect Series
LENS MATERIAL
  • Tempered Glass
CONFORMITY STANDARDS
  • CE
  • UL Recognized Component (M12 Quick Disconnect Series)
  • IEC62471-2
  • RoHS
PROTECTION RATING
  • IP66G
  • IP67G
  • IP69K
