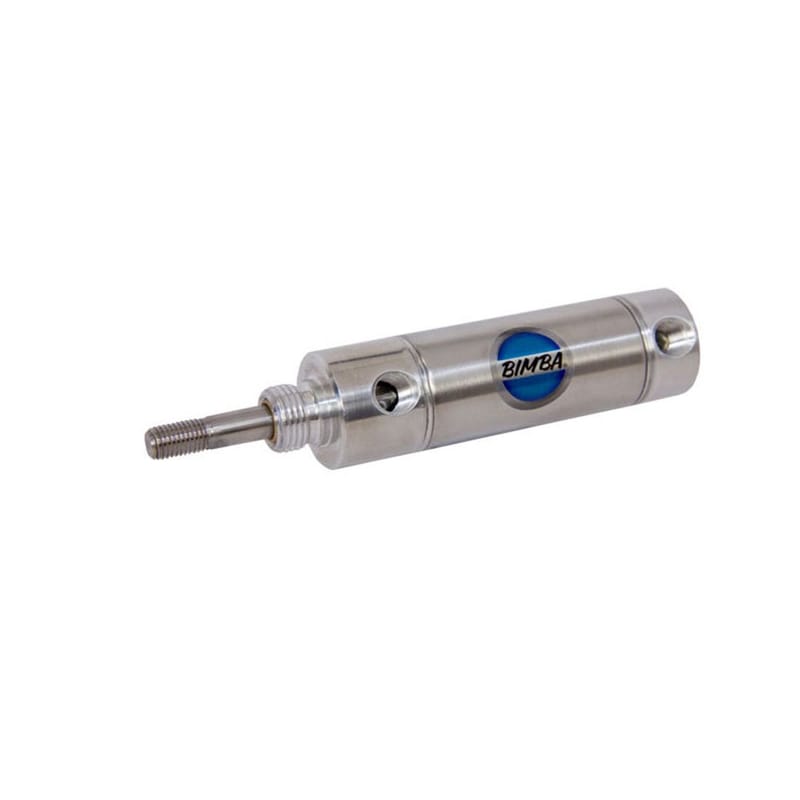

C-311-DXP Bimba Original Line Cylinder with Adjustable Cushions

Sku#: C-311-DXP

Contact us for availability.
The Bimba C-311-DXP original line cylinder with adjustable cushions has a 1 1/2" bore size and a 0.011 stroke length. The C-311-DXP is a double acting cylinder with a front nose mounting style. The cylinder has cushions on both ends.

The Bimba "Blue and Improved" Original Line® cylinder with adjustable cushions features permanent grease lubrication that more than doubles the anticipated service life of this design. Cushions offer solutions to applications with destructive kinetic energy levels. Air cushions trap small amounts of exhaust air at end of stroke, providing a pocket of compressible air to decelerate loads.

  • Bore sizes:  3/4", 1-1/16", 1-1/2", 2", 2-1/2", 3"
  • High strength aluminum alloy porting ends
  • Buna N "U" Cup seals
  • Low breakaway friction:  less than 5 PSI
  • Blue and Improved design doubles previous cylinder life
  • Permanent grease lubricant requires no additional lubrication during service
