BC1MNB NGT Pneumatic Cartridge Valve for a Manifold, Cv 1.2
Sku#: BC1MNB
Contact us for availability.
Details
More Information
Reviews

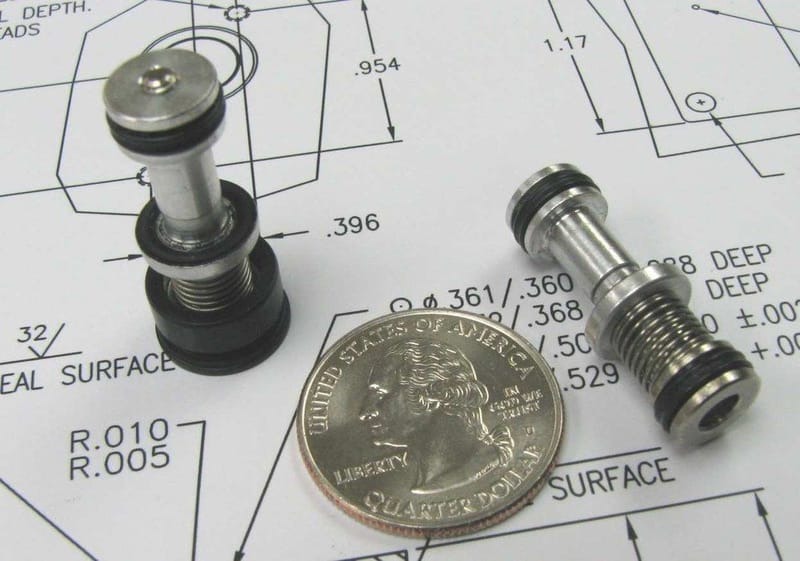

The NGT BC1MNB is a pneumatic cartridge valve for a manifold, Cv 1.2.
Basic Operation:
Lock your pneumatic device in position when a pressure drop or total loss of pressure occurs. Good for leak testing. Insert the cartridge assembly into a machined cavity and attach a cover for easy assembly. The BC1MNB is the cartridge, bearing and spring.
- .000113 cc/min Leak Rate
- Inserts From One Side
- Easy Repair
- Small Size
- 100% Tested
Operating Data:
| Max. Pressure: | 120 psi |
| Min. Pilot Pressure: | 30 psi @ 80 psi |
| Leak Rate: | .000113 cc/min |
| Temperature Range: | 30 - 150 F |
| Cycle Rate: | 1 cyc./sec. max. |
| Flow Capacity (Cv): | 1.2 |
| Cracking Pressure: | 2 - 3 psi |
| Service: | Properly filtered dry air or lubricated air |
Available Models:
| Description | Model |
|---|---|
| Cartridge, Bearing, Cover, Spring & Screws | BC1MNAS |
| Cartridge, Bearing & Spring | BC1MNB |
| Cartridge & Spring | BC1MN |
