B81FMAD NGT 1/2 NPTF Adjustable "Quick Stop" Pilot-Operated Check Valve, Flush Manual Release
Sku#: B81FMAD
Contact us for availability.
Details
More Information
Reviews

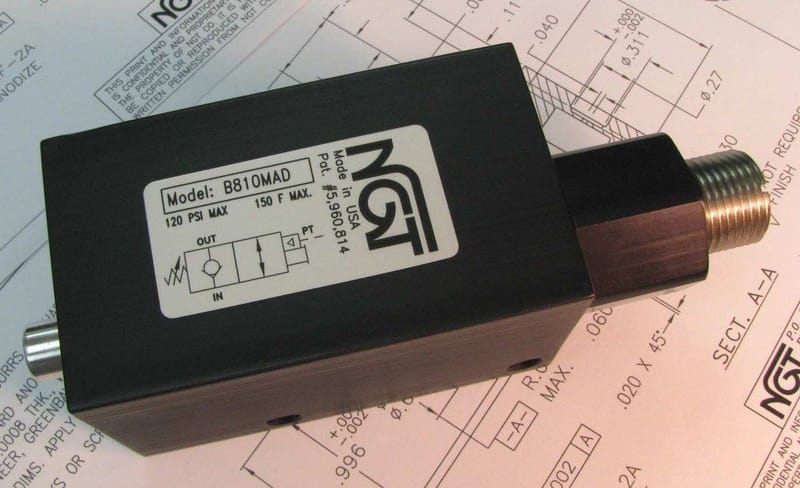

The NGT B81FMAD is a 1/2 NPTF adjustable "Quick Stop" pilot-operated check valve with a flush manual release.
Basic Operation:
Locks any pneumatic device in position when a pressure drop or total loss of pressure occurs. Standard pilot-operated check valves will not close fast enough when back pressure is present in the pilot line. Increasing the spring pressure causes the valve to close before all the air exhausts, resulting in faster stops.
- Adjustable Pilot Pressure
- Faster Stops
- .0000522 cc/min Leak Rate
- Manual Release Option
Operating Data:
| Max. Pressure: | 120 psi |
| Min. Pilot Pressure: | Adjustable |
| Leak Rate: | .0000522 cc/min |
| Temperature Range: | 30 - 150 F |
| Cycle Rate: | 1 cyc./sec. |
| Flow Capacity (Cv): | 3.8 max. |
| Cracking Pressure: | 1 - 2 psi |
| Service: | Properly filtered dry air or lubricated air |
Available Models:
| Model No. | No Manual Release | Manual Release | Flush Manual Release |
|---|---|---|---|
| 1/2 NPTF | B8100AD | B810MAD | B81FMAD |
| 3/4 NPTF | B12100AD | B1210MAD | B121FMAD |
