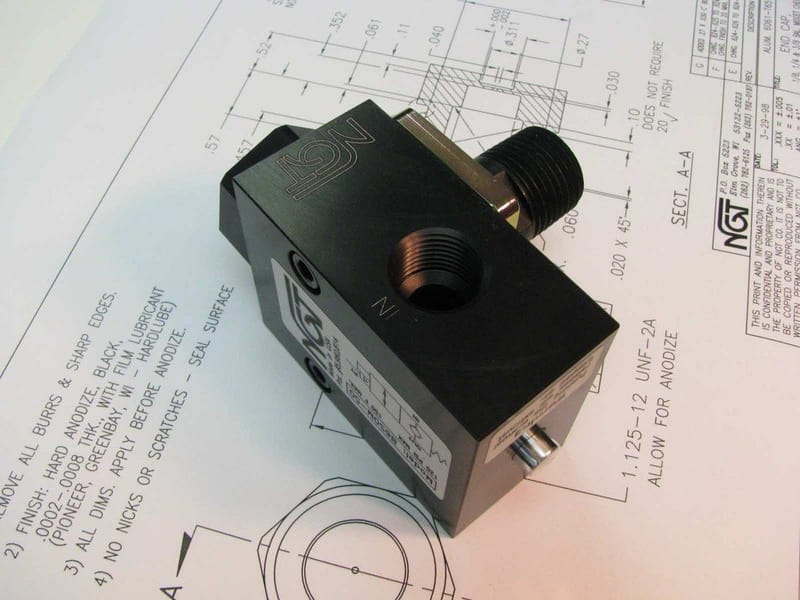

B6S00AD38 NGT 3/8 NPTF Input x 3/8 Swivel Mount Pilot-Operated Check Valve, No Manual Release, Adjustable Pilot
Sku#: B6S00AD38
Contact us for availability.
Details
More Information
Reviews
The NGT B6S00AD38 is a 3/8 NPTF input x 3/8 swivel mount pilot-operated check valve with no manual release and adjustable pilot pressure.
Basic Operation:
Locks any pneumatic device in position when a pressure drop or total loss of pressure occurs. The swivel mounts the valve directly to the cylinder port. Manual release removes trapped air before maintaining the system (OSHA requirement).
- Direct Mounting Swivel
- Optional Manual Release
- .0000522 cc/min Leak Rate
Operating Data:
| Max. Pressure: | 150 psi |
| Min. Pilot Pressure: | 40 psi |
| Temperature Range: | 30 - 150 F |
| Cycle Rate: | 1 cyc./sec. max. |
| Flow Capacity (Cv): | 2.6 |
| Cracking Pressure: | 1 - 2 psi |
| Service: | Properly filtered dry air or lubricated air |
Available Models:
| Input x Swivel | No Manual Release | Manual Release | Flush Manual Release |
|---|---|---|---|
| 1/4 x 1/4 | B4S00-25 | B4S0M-25 | B4SFM-25 |
| 1/4 x 3/8 | B4S00-38 | B4S0M-38 | B4SFM-38 |
| 1/4 x 1/2 | B4S00-50 | B4S0M-50 | B4SFM-50 |
| 3/8 x 1/4 | B6S00-25 | B6S0M-25 | B6SFM-25 |
| 3/8 x 3/8 | B6S00-38 | B6S0M-38 | B6SFM-38 |
| 3/8 x 1/2 | B6S00-50 | B6S0M-50 | B6SFM-50 |
| Flow control (FL) and adjustable quick-close (AD) versions are also available. For low temp add (-T40) to the end of the model # (ex. B4S00-25-T40). For low pilot pressure add (-K18) to the end of the model #. |
|||
