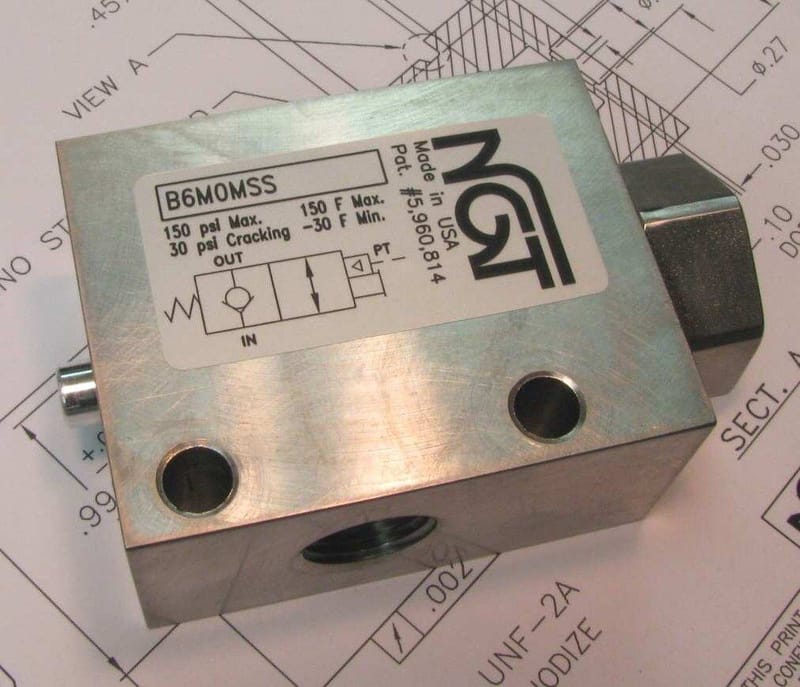

B6M0MSS-T40 NGT 3/8 NPTF 316 Stainless Steel Balanced Pilot Operated Check Valve, Manual Release, Low Temp

Sku#: B6M0MSS-T40

Contact us for availability.
The NGT B6M0MSS-T40 is a 3/8 NPTF 316 stainless steel balanced pilot operated check valve with a manual release and low-temperature seals (to -40 F). Lock your pneumatic device in position when a pressure drop or total loss of pressure occurs.

The NGT B6M0MSS-T40 is a 3/8 NPTF 316 stainless steel balanced pilot operated check valve with a manual release and low-temperature seals (to -40 F).

Basic Operation:

Lock your pneumatic device in position when a pressure drop or total loss of pressure occurs. Manual release for exhausting trapped air before maintaining the system (OSHA Requirement).

  • 316 Stainless Steel Body
  • Immediate Checking
  • Optional Manual Release
  • .0000522 cc/min Leak Rate
  • Low & High Temp

Operating Data:

Max. Pressure: 150 psi
Min. Pilot Pressure: 40 psi
Leak Rate: .0000522 cc/min
Temperature Range: -40 - 150 F (-T40 low temp seals)
Cycle Rate: 1 cyc./sec. max.
Flow Capacity (Cv): 2.6
Cracking Pressure: 1 - 2 psi
Service: Properly filtered dry air or lubricated air

Available Models:

Model No.No Manual ReleaseManual ReleaseFlush Manual Release
1/4 NPTF B4M00SS B4M0MSS B4MFMSS
3/8 NPTF B6M00SS B6M0MSS B6MFMSS
For high temp seals add (-V) to the model # (ex. B4M0MSS-V).
For low temp seals add (-T40) to the model # (ex. B4M0MSS-T40).
