B6M0MFL-T40 NGT 3/8 NPTF Balanced Pilot Operated Check Valve with Flow Control, Manual Release, Low Temp
Sku#: B6M0MFL-T40
Contact us for availability.
Details
More Information
Reviews

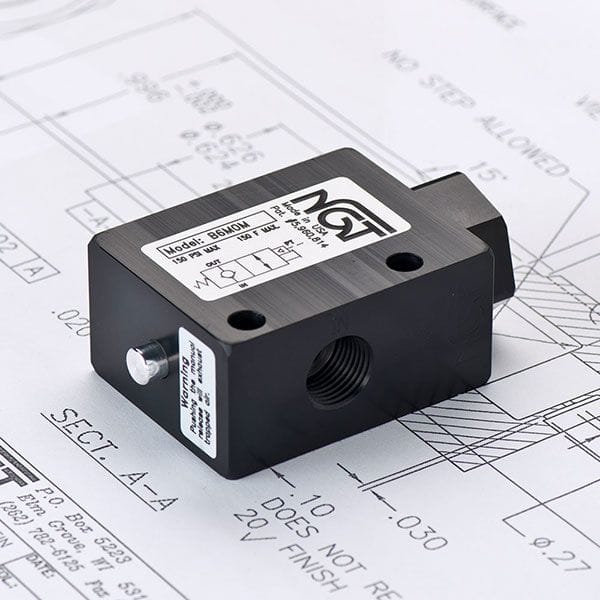

The NGT B6M0MFL-T40 is a 3/8 NPTF balanced pilot operated check valve with flow control, a manual release and low-temperature seals (to -40 F).
Basic Operation:
Hold position when a pressure drop or total loss of pressure occurs. The flow control meters air from the output to the input port for fast advance and slow retract, avoiding crash landings. Manual release to exhaust trapped air before maintaining the system (OSHA Requirement).
- Avoid Crash Landings
- Optional Manual Release
- .0000522 cc/min Leak Rate
- Non-Ferrous Available
Operating Data:
| Max. Pressure: | 150 psi |
| Min. Pilot Pressure: | 40 psi |
| Temperature Range: | -40 - 150 F (-T40 low temp seals) |
| Cycle Rate: | 1 cyc./sec. max. |
| Flow Capacity (Cv): | 2.6 max. |
| Cracking Pressure: | 1 - 2 psi |
| Service: | Properly filtered dry air or lubricated air |
Available Models:
| Model No. | No Manual Release | Manual Release | Flush Manual Release |
|---|---|---|---|
| 1/4 NPTF | B4M00FL | B4M0MFL | B4MFMFL |
| 3/8 NPTF | B6M00FL | B6M0MFL | B6MFMFL |
| 1/4 BSPP | BG4M00FL-1 | BG4M0MFL-1 | BG4MFMFL-1 |
| 3/8 BSPP | BG6M00FL | BG6M0MFL | BG6MFMFL |
| For a lower pilot pressure add (-K18) to the model # (ex. B4M0MFL-K18). | |||
