B4SC0025 NGT 1/4 NPTF Input x 1/4 Swivel Mount Counterbalance Valve, No Manual Release
Sku#: B4SC0025
Contact us for availability.
Details
More Information
Reviews

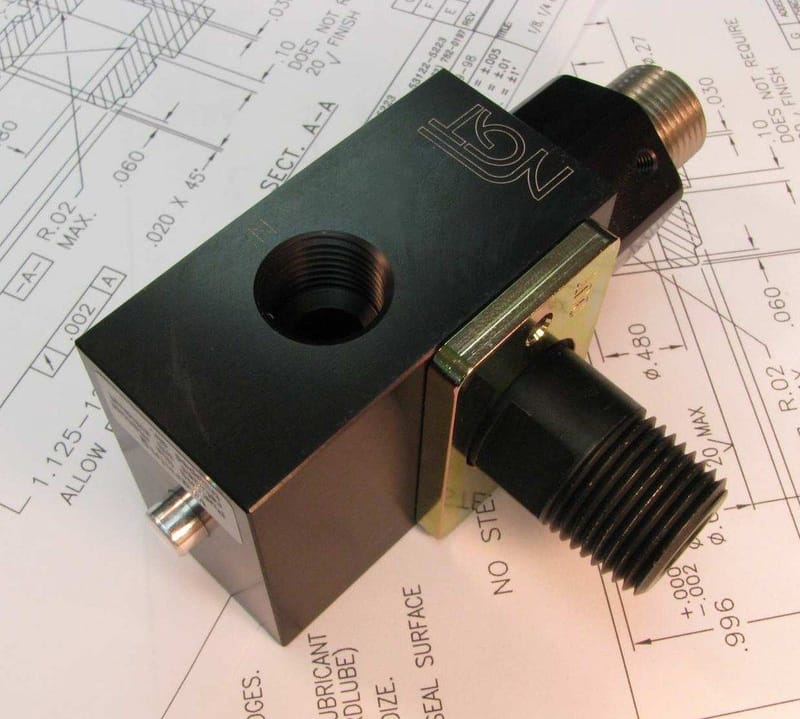

The NGT B4SC0025 is a 1/4 NPTF input x 1/4 swivel mount counterbalance valve with no manual release.
Basic Operation:
The counterbalance valve will hold a load in position until pressure or an external force is applied to move the load. Turning the adjusting screw clockwise will increase the load carrying capacity of the valve. The swivel mounts the valve directly to the cylinder port. Optional manual and flush manual release.
- Adjustable Load Setting
- Direct Mounting Swivel
- Optional Manual Release
- .0000522 cc/min Leak Rate
Operating Data:
| Max. Pressure: | 120 psi |
| Leak Rate: | .0000522 cc/min |
| Temperature Range: | 30 - 150 F |
| Cycle Rate: | 1 cyc./sec. |
| Flow Capacity (Cv): | 2.6 |
| Cracking Pressure: | 1 - 2 psi |
| Service: | Properly filtered dry air or lubricated air |
Available Models:
| Input x Swivel | No Manual Release | Manual Release | Flush Manual Release |
|---|---|---|---|
| 1/4 x 1/4 | B4SC00-25 | B4SC0M-25 | B4SCFM-25 |
| 1/4 x 3/8 | B4SC00-38 | B4SC0M-38 | B4SCFM-38 |
| 1/4 x 1/2 | B4SC00-50 | B4SC0M-50 | B4SCFM-50 |
| 3/8 x 1/4 | B6SC00-25 | B6SC0M-25 | B6SCFM-25 |
| 3/8 x 3/8 | B6SC00-38 | B6SC0M-38 | B6SCFM-38 |
| 3/8 x 1/2 | B6SC00-50 | B6SC0M-50 | B6SCFM-50 |
