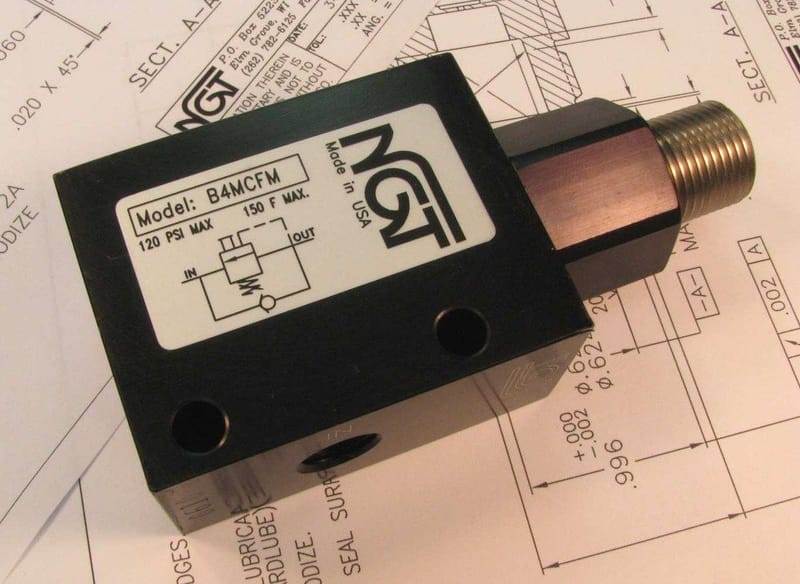

B4MC0M NGT 1/4 NPTF Pneumatic Counterbalance Valve, Manual Release
Sku#: B4MC0M
Contact us for availability.
Details
More Information
Reviews
The NGT B4MC0M is a 1/4 NPTF pneumatic counterbalance valve with a manual release.
Basic Operation:
The counterbalance valve will hold a load in position until pressure or an external force is applied to move the load. Turning the adjusting screw clockwise will increase the load carrying capacity of the valve. Optional manual and flush manual release.
- Adjustable Load Setting
- Optional Manual Release
- .0000522 cc/min Leak Rate
Operating Data:
| Max. Pressure: | 120 psi |
| Leak Rate: | .0000522 cc/min |
| Temperature Range: | 30 - 150 F |
| Cycle Rate: | 1 cyc./sec. |
| Flow Capacity (Cv): | 2.6 |
| Cracking Pressure: | 1 - 2 psi |
| Service: | Properly filtered dry air or lubricated air |
Available Models:
| Model No. | No Manual Release | Manual Release | Flush Manual Release |
|---|---|---|---|
| 1/4 NPTF | B4MC00 | B4MC0M | B4MCFM |
| 3/8 NPTF | B6MC00 | B6MC0M | B6MCFM |
| 1/4 BSPP | BG4MC00 | BG4MC0M | BG4MCFM |
| 3/8 BSPP | BG6MC00 | BG6MC0M | BG6MCFM |
