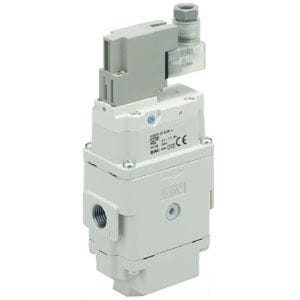

AV3000-N03-3DZB-Z-A SMC Soft Start Valve

Sku#: AV3000-N03-3DZB-Z-A

Contact us for availability.
The SMC AC3000-N03-3DZB-Z-A soft start valve has a 3000 body size and with a 3/8" NPT port size. The AC3000-N03-3DZB-Z-A uses a DIN Termincal w/Connector, includes surge voltage suppressor, name plate and pressure gauge in Imperial units.

The SMC series AV-A soft start-up valves allow the user to set the initial rate of system pressurizations to minimize system shock.  When deactivated, the valve quickly exhausts the system for safe servicing of equipment.

  • Improved flow and energy efficiency vs. previous AV
  • Modular connectivity wiht FRL components
  • White to match current FRL color Scheme
  • Available voltages: 12, 24VDC; 100, 110~120, 200, 220VAC
