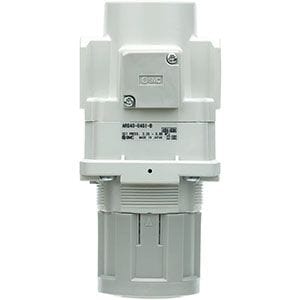

ARG30-N02G1H-Z-B SMC 1/4-Inch NPT Air Regulator with Built-In Pressure Gauge

The SMC ARG30-N02G1H-Z Air Regulator with Built-In Pressure Gauge provides compact and convenient compressed-air pressure regulation for industrial pneumatic systems. Part of SMC's modular ARG Series, the regulator integrates the pressure gauge directly into the regulator body, reducing installation space while eliminating the need for a separately mounted pressure gauge.

The ARG30-N02G1H-Z features a body size 30 design with 1/4-inch NPT inlet and outlet ports and a pressure setting range up to 0.85 MPa. This configuration also includes a panel-mount set nut, allowing the regulator to be incorporated into machine panels and other pneumatic control installations. Exact-part listings from SMC distributors identify the ARG30-N02G1H-Z as the 30-body-size, 1/4-inch NPT configuration with a built-in gauge and panel-mount set nut.

The ARG Series is designed to make pressure monitoring easy while maintaining a compact footprint. The mounting angle of the built-in pressure gauge can be selected according to piping direction, and SMC incorporates an anti-revolving mechanism that helps prevent the gauge from rotating when the regulator adjustment handle is operated. The pressure gauge cover is also designed for one-touch mounting and removal.

The SMC ARG30-N02G1H-Z is well suited for industrial automation, machine building, packaging equipment, material handling systems, and other pneumatic applications that require reliable downstream air-pressure regulation with convenient visual pressure monitoring.

Key Product Features:

• SMC part number ARG30-N02G1H-Z

• ARG Series modular air regulator

• Integrated pressure gauge

• Body size 30

• 1/4-inch NPT ports

• Pressure setting range up to 0.85 MPa

• G1 (0°) pressure gauge orientation

• Panel-mount set nut included

• Anti-revolving gauge mechanism

• Compact regulator and gauge combination

• Designed for industrial compressed-air systems

SMC Product Update: SMC has released the newer ARG-B Series as the replacement for the original ARG Series and strongly recommends the ARG-B Series for new applications. The original ARG Series, including the ARG30-N02G1H-Z, remains supported with inventory, and SMC states that no obsolescence date has been announced. Customers designing new equipment should consider the corresponding ARG-B configuration, while existing ARG installations can continue to be supported with ARG Series components as available.
