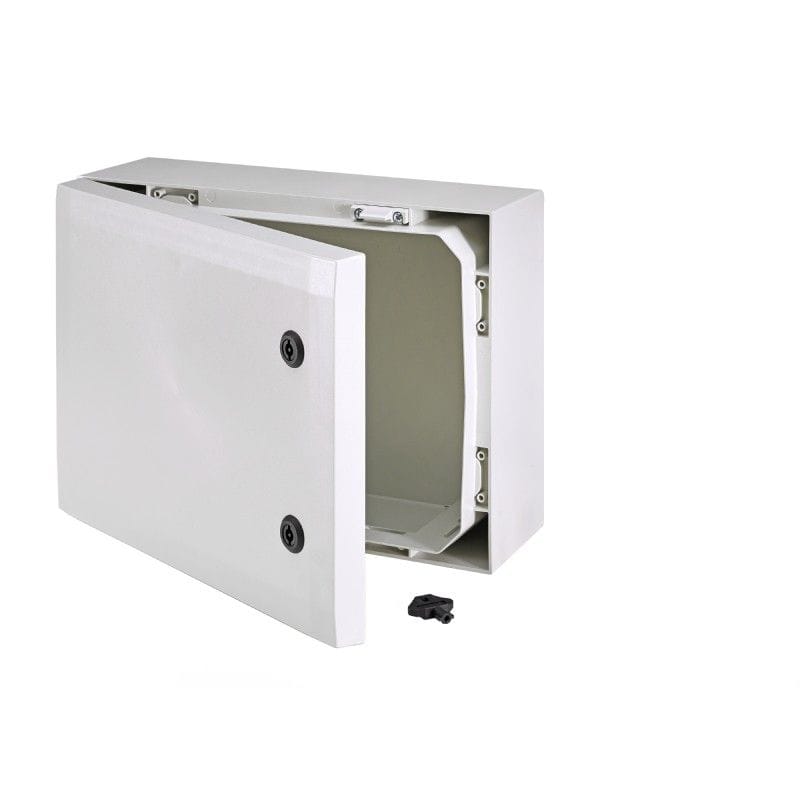

ARCA 304015 Fibox Polycarbonate Enclosure

The Fibox ARC 304015 Polycarbonate Enclosure is a robust, cabinet-style enclosure designed for secure protection of electrical and control components in industrial and outdoor environments. Measuring 11.8" x 15.7" x 6.2", this enclosure is crafted from high-quality polycarbonate in a light grey RAL 7035 finish and features a two-point locking mechanism with hinges on the short side, providing both security and easy access.

Rated IP66, this enclosure delivers superior protection against dust, water, and impacts, making it suitable for demanding environments. Its IK10 impact resistance and UL ratings (Types 1, 4, 4X, 12, and 13) ensure durability and compliance with industrial standards. With continuous temperature resilience from -40°F to 175°F, it meets the demands of extreme conditions. The enclosure includes a polyurethane (PUR) gasket for a tight seal, full insulation, UV resistance, and UL94-5VA flammability rating, making it a reliable choice for various applications.

For more information on selecting the right enclosure, explore Scott Equipment Company’s resources on Electrical Enclosures in Industrial Automation and Understanding Control Boxes. Discover additional Fibox enclosures and accessories at Scott Equipment.

Features:

• Material: High-quality polycarbonate with light grey RAL 7035 finish
• Ingress Protection: IP66 rated for water and dust resistance
• Temperature Range: -40°F to 175°F continuous; up to 250°F short-term
• UL Ratings: Types 1, 4, 4X, 12, and 13; UV resistant
• Impact Resistance: IK10 for enhanced durability
• Dimensions: 11.8" x 15.7" x 6.2" with two-point locking for security
