AR181610CHSS Fibox Polycarbonate Enclosure
Sku#: AR181610CHSS

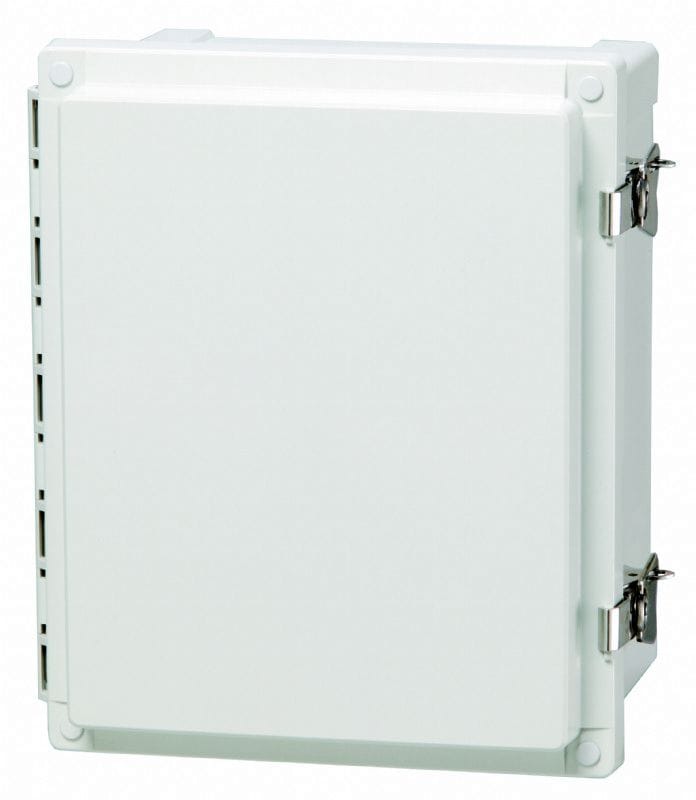

The Fibox AR181610CHSS Polycarbonate Enclosure is a high-quality enclosure engineered to protect electrical components in demanding industrial and outdoor settings. Measuring 18" x 16" x 10", this rugged polycarbonate enclosure features a hinged opaque screw cover with a stainless steel lockable latch, ensuring both security and easy access. With an IP66/IP67 rating, it offers excellent resistance to dust, water, and impacts, making it ideal for environments requiring reliable protection.
This fully insulated enclosure is designed to meet stringent safety and performance standards, including UL Types 4, 4X, 12, 12K, and 13 ratings. It is built to withstand temperatures from -40°F to 175°F continuously and up to 250°F for short periods. The polyurethane (PUR) gasket creates a tight seal, while the enclosure’s UV resistance and UL94-5VA flammability rating ensure durability in extreme conditions.
For assistance with enclosure selection, refer to Scott Equipment’s resources on Electrical Enclosures in Industrial Automation and Understanding Control Boxes. Discover the complete range of Fibox enclosures and accessories at Scott Equipment.
Features:
- Material: Polycarbonate with light grey RAL 7035 finish
- Ingress Protection: IP66/IP67 for dustproof and waterproof protection
- Temperature Range: -40°F to 175°F continuous; up to 250°F short-term
- UL Ratings: Types 4, 4X, 12, 12K, and 13; UV resistant
- Impact Resistance: IK09 for reliable durability
- Dimensions: 18" x 16" x 10" with hinged opaque screw cover and lockable latch
