AR16148CHSSL Fibox Polycarbonate Enclosure
Sku#: AR16148CHSSL

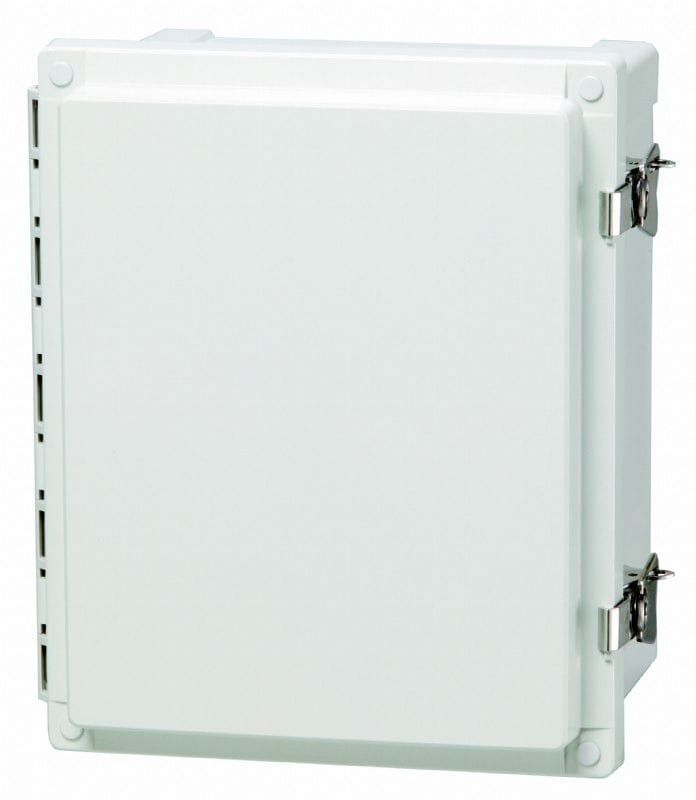

The Fibox AR16148CHSSL Polycarbonate Enclosure is engineered to protect sensitive electrical components in harsh industrial and outdoor environments. Measuring 16" x 14" x 8", this enclosure is constructed from high-quality polycarbonate with a light grey RAL 7035 finish. It features a hinged opaque screw cover with a stainless steel lockable latch, combining both accessibility and enhanced security for critical components.
Rated IP66/IP67, the AR16148CHSSL enclosure provides outstanding resistance to dust, water, and impacts, making it suitable for demanding conditions. This enclosure meets rigorous UL standards, with UL Types 4, 4X, 12, 12K, and 13 ratings, and is fully insulated, halogen-free, and UV resistant. Built to withstand continuous temperatures from -40°F to 175°F and short-term exposure up to 250°F, it delivers reliable performance across diverse applications. The polyurethane (PUR) gasket ensures a tight seal, while the UL94-5VA flammability rating adds durability and safety.
For more insights into selecting the right enclosure, explore Scott Equipment Company’s resources on Electrical Enclosures in Industrial Automation and Understanding Control Boxes. Browse our full range of Fibox enclosures and accessories at Scott Equipment.
Features:
- Material: Polycarbonate with light grey RAL 7035 finish
- Ingress Protection: IP66/IP67 rated for dust and water resistance
- Temperature Range: -40°F to 175°F continuous; up to 250°F short-term
- UL Ratings: Types 4, 4X, 12, 12K, and 13; UV resistant
- Impact Resistance: IK09 for added durability
- Dimensions: 16" x 14" x 8" with hinged opaque screw cover and lockable latch for secure access
