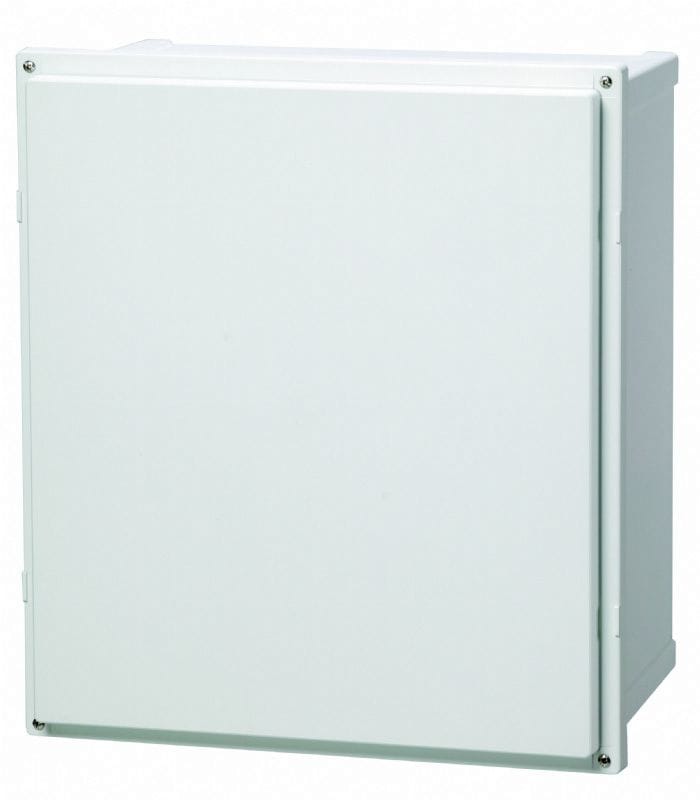

AR14127SC Fibox Polycarbonate Enclosure

The Fibox AR14127SC Polycarbonate Enclosure is a robust solution for protecting electrical and control components in demanding environments. With dimensions of 14" x 12" x 7", this enclosure is crafted from high-grade polycarbonate in a light grey RAL 7035 finish. It features a raised opaque screw cover, providing both security and easy access. Built to IP66/IP67 standards, this enclosure offers superior protection against dust, water, and impacts, making it suitable for both indoor and outdoor applications.

This fully insulated enclosure is rated for UL Types 4, 4X, 12, 12K, and 13, providing reliable performance in industrial settings. It withstands continuous temperatures from -40°F to 175°F and short-term exposure up to 250°F, ideal for various applications. The polyurethane (PUR) gasket ensures a tight seal, while its UV resistance and UL94-5VA flammability rating ensure durability and long-lasting protection in challenging conditions.

For additional guidance on choosing the right enclosure, see Scott Equipment Company’s resources on Electrical Enclosures in Industrial Automation and Understanding Control Boxes. View the full selection of Fibox enclosures available at Scott Equipment.

Features:

• Material: Polycarbonate with light grey RAL 7035 finish
• Ingress Protection: IP66/IP67 for dust and water resistance
• Temperature Range: -40°F to 175°F continuous; up to 250°F short-term
• UL Ratings: Types 4, 4X, 12, 12K, and 13; UV resistant
• Impact Resistance: IK09 for robust durability
• Dimensions: 14" x 12" x 7" with raised opaque screw cover for secure access
