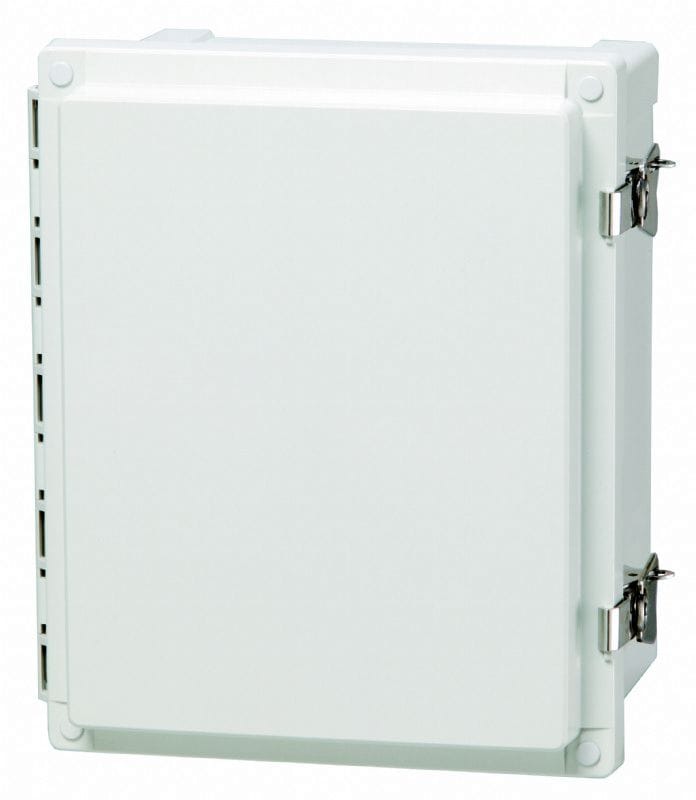

AR12106CHSSL Fibox Polycarbonate Enclosure
Sku#: AR12106CHSSL
The Fibox AR12106CHSSL Polycarbonate Enclosure is engineered to safeguard electrical components in harsh industrial and outdoor settings. Measuring 12" x 10" x 6", this enclosure is made from high-quality polycarbonate with a light grey RAL 7035 finish. It includes a hinged opaque screw cover and a stainless steel lockable latch, combining security with convenient access for maintenance and inspections.
Built to withstand extreme conditions, the AR12106CHSSL is rated IP66/IP67, offering robust resistance to dust, water, and impact. Its construction meets stringent standards, including UL Types 4, 4X, 6, 6P, 12, 12K, and 13, making it suitable for diverse applications. The enclosure is fully insulated, UV resistant, and operates in a temperature range from -40°F to 175°F continuously, with short-term resistance up to 250°F. The polyurethane gasket ensures a tight seal, while the UL94-5VA flammability rating enhances durability and safety.
For more information on selecting the right enclosure, check out Scott Equipment Company’s resources on Electrical Enclosures in Industrial Automation and Understanding Control Boxes. Explore our complete range of Fibox enclosures and accessories available at Scott Equipment.
Features:
- Material: Polycarbonate with light grey RAL 7035 finish
- Ingress Protection: IP66/IP67 rated for dustproof and waterproof protection
- Temperature Range: -40°F to 175°F continuous; up to 250°F short-term
- UL Ratings: Types 4, 4X, 6, 6P, 12, 12K, and 13; UV resistant
- Impact Resistance: IK09 for durability in harsh environments
- Dimensions: 12" x 10" x 6" with hinged opaque screw cover and lockable latch for security
