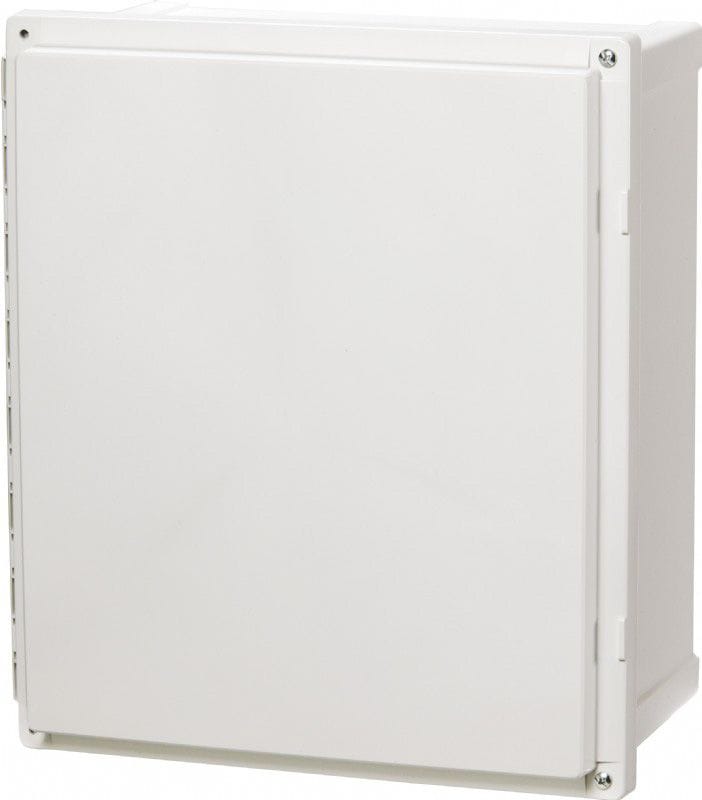

AR12106CHSC Fibox Polycarbonate Enclosure
Sku#: AR12106CHSC
The Fibox AR12106CHSC Polycarbonate Enclosure provides exceptional protection for sensitive electrical components in demanding industrial and outdoor settings. Measuring 12" x 10" x 6", this robust enclosure is constructed from high-grade polycarbonate with a light grey finish (RAL 7035) and features a hinged, opaque raised screw cover. With an IP66/IP67 rating, it offers strong resistance against dust, water, and impacts, making it suitable for both indoor and outdoor environments.
This enclosure is fully insulated, halogen-free, and rated for extreme temperature ranges, operating continuously from -40°F to 175°F and up to 250°F for short periods. It is also designed to meet NEMA standards (UL Type 4, 4X, 6, 6P, 12, 12K, and 13) and includes a polyurethane (PUR) gasket for a secure seal. The UL94-5VA flammability rating, along with UV resistance, enhances its durability in challenging conditions, providing reliable protection for critical components.
For more information on choosing the right enclosure for your application, see Scott Equipment Company’s guide on Electrical Enclosures in Industrial Automation and our article on Understanding Control Boxes. For additional sizes and options, explore our full range of Fibox enclosures and accessories.
Features:
- Material: Polycarbonate with light grey RAL 7035 finish
- Ingress Protection: IP66/IP67 for robust dust and water resistance
- Temperature Range: Operates continuously from -40°F to 175°F; short-term up to 250°F
- UL Ratings: NEMA Types 4, 4X, 6, 6P, 12, 12K, and 13; UV resistant
- Fully Insulated: Halogen-free and UL94-5VA flammability rated
- Dimensions: 12" x 10" x 6" with hinged opaque screw cover for secure access
