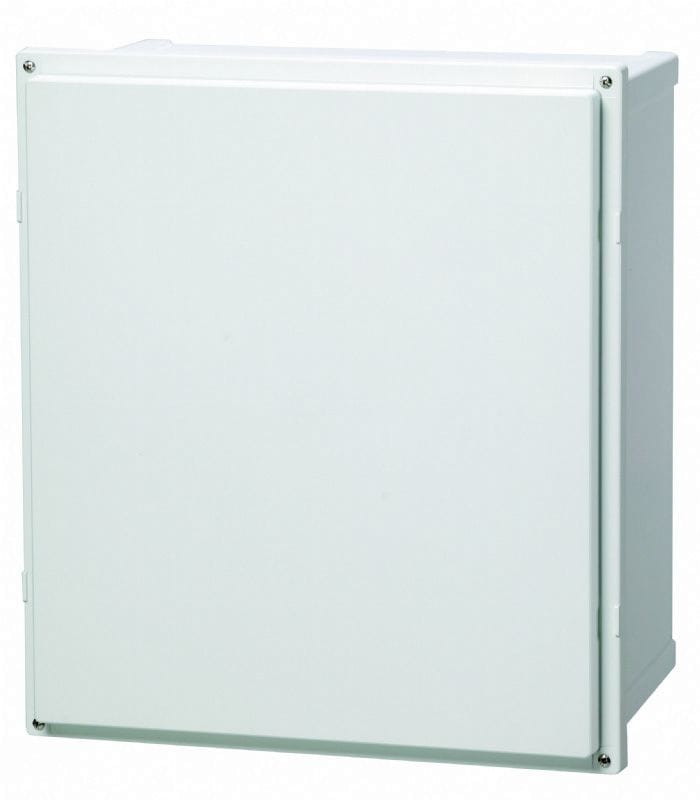

AR1086SC Fibox Polycarbonate Enclosure
Sku#: AR1086SC
The Fibox AR1086SC Polycarbonate Enclosure is designed to protect sensitive electrical equipment in demanding industrial and outdoor environments. This 10" x 8" x 6" enclosure features a raised opaque screw cover, made from durable polycarbonate in a light grey RAL 7035 finish. With an IP66/IP67 rating, it offers outstanding resistance to dust, water, and impacts, making it an ideal choice for both indoor and outdoor applications.
This enclosure is fully insulated and halogen-free, withstanding a wide temperature range, from -40°F to 175°F continuously and up to 250°F for short periods. Rated UL Type 4, 4X, 6, 6P, 12, 12K, and 13, it also provides UV resistance and is designed to meet stringent safety standards with a UL94-5VA flammability rating. The polyurethane gasket ensures a secure seal, while the enclosure’s robust design enhances its durability and longevity in challenging conditions.
For more guidance on choosing the right enclosure, explore Scott Equipment Company’s resources on Electrical Enclosures in Industrial Automation and Understanding Control Boxes. For additional sizes and configurations, visit our complete selection of Fibox enclosures and accessories.
Features:
- Material: Polycarbonate with light grey RAL 7035 finish
- Ingress Protection: IP66/IP67 rated for protection against dust and water
- Temperature Range: -40°F to 175°F continuous; up to 250°F short-term
- UL Ratings: NEMA Types 4, 4X, 6, 6P, 12, 12K, and 13; UV resistant
- Fully Insulated: Halogen-free and UL94-5VA flammability rated
- Dimensions: 10" x 8" x 6" with raised opaque screw cover for added protection
