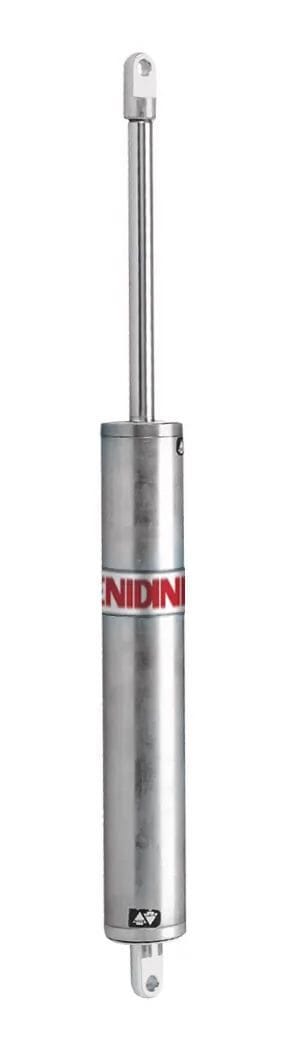

ADA 730 TC HH Enidine Adjustable Rate Control, 12 in Stroke, Adjustable in Tension and Compression
Sku#: ADA 730 TC HH
Contact us for availability.
Details
More Information
Reviews
The Enidine ADA 730 TC HH is an adjustable, double acting rate control with 12 in (300 mm) stroke: adjustable in Tension and Compression.
Enidine rate controls regulate the speed and time a mechanism takes to move from one position to another. Adjustable, double acting ADA 500 and ADA 700 Series rate controls regulate speed in tension and/or compression independently, so the rate can be adjusted to suit the application.
Specifications:
| Manufacturer: | Enidine |
| Model: | ADA 730 TC HH |
| Enidine part number: | FP3361130HH |
| Series: | ADA 700 |
| Type: | Adjustable, double acting rate control |
| Damping direction: | Adjustable in Tension and Compression |
| Stroke: | 12 in (300.0 mm) |
| Max. energy per hour: | 2,800,000 in-lbs/hour (326 000 Nm/hour) |
| Bore size: | .98 in (25 mm) |
| Max. propelling force, tension: | 2,500 lbs (11 000 N) |
| Max. propelling force, compression: | 2,500 lbs (11 000 N) |
| Weight: | 7.1 lbs (3.2 kg) |
Source: Enidine 2026 price list; ratings from the Enidine shock absorber catalogue (p.108).
