ADA 725 TC GG Enidine Adjustable Rate Control, 10 in Stroke, Adjustable Tension, Adjustable Compression
Sku#: ADA 725 TC GG
Contact us for availability.
Details
More Information
Reviews

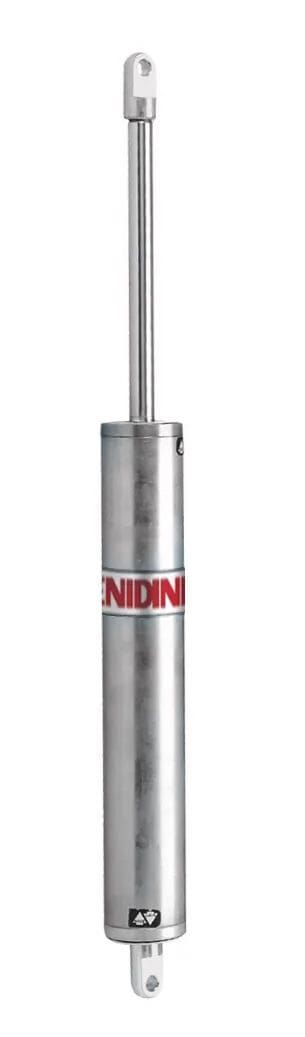

The Enidine ADA 725 TC GG is an adjustable, double acting rate control with 10 in (250 mm) stroke: adjustable Tension, Adjustable Compression.
Enidine rate controls regulate the speed and time a mechanism takes to move from one position to another. Adjustable, double acting ADA 500 and ADA 700 Series rate controls regulate speed in tension and/or compression independently, so the rate can be adjusted to suit the application.
Specifications:
| Manufacturer: | Enidine |
| Model: | ADA 725 TC GG |
| Enidine part number: | FP3361125GG |
| Series: | ADA 700 |
| Type: | Adjustable, double acting rate control |
| Damping direction: | Adjustable Tension, Adjustable Compression |
| Stroke: | 10 in (250.0 mm) |
| Max. energy per hour: | 2,500,000 in-lbs/hour (286 000 Nm/hour) |
| Bore size: | .98 in (25 mm) |
| Max. propelling force, tension: | 2,500 lbs (11 000 N) |
| Max. propelling force, compression: | 2,500 lbs (11 000 N) |
| Weight: | 6.4 lbs (2.9 kg) |
Source: Enidine 2026 price list; ratings from the Enidine shock absorber catalogue (p.108).
