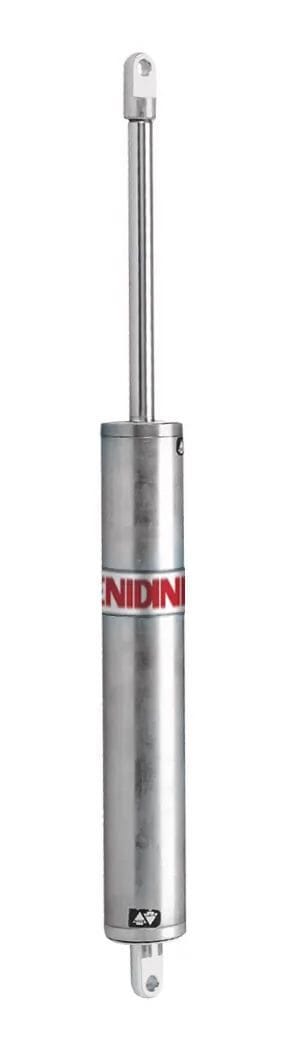

The Enidine ADA 720 MTC BB is an adjustable, double acting rate control with 8.00 in (200 mm) stroke: adjustable in Tension and Compression.
Enidine rate controls regulate the speed and time a mechanism takes to move from one position to another. Adjustable, double acting ADA 500 and ADA 700 Series rate controls regulate speed in tension and/or compression independently, so the rate can be adjusted to suit the application.
Specifications:
| Manufacturer: | Enidine |
| Model: | ADA 720 MTC BB |
| Enidine part number: | RC3361120BB |
| Series: | ADA 700 |
| Type: | Adjustable, double acting rate control |
| Damping direction: | Adjustable in Tension and Compression |
| Stroke: | 8 in (200.0 mm) |
| Max. energy per hour: | 2,100,000 in-lbs/hour (247 000 Nm/hour) |
| Bore size: | .98 in (25 mm) |
| Max. propelling force, tension: | 2,500 lbs (11 000 N) |
| Max. propelling force, compression: | 2,500 lbs (11 000 N) |
| Weight: | 5.7 lbs (2.6 kg) |
Source: Enidine 2026 price list; ratings from the Enidine shock absorber catalogue (p.108).
