ADA 510 TC Enidine Adjustable Rate Control, 4.00 in Stroke, Adjustable Compression, Adjustable Tension
Sku#: ADA 510 TC
Contact us for availability.
Details
More Information
Reviews

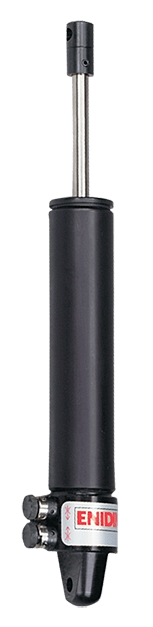

The Enidine ADA 510 TC is an adjustable, double acting rate control with 4.00 in (100 mm) stroke: adjustable Compression, Adjustable Tension.
Enidine rate controls regulate the speed and time a mechanism takes to move from one position to another. Adjustable, double acting ADA 500 and ADA 700 Series rate controls regulate speed in tension and/or compression independently, so the rate can be adjusted to suit the application.
Specifications:
| Manufacturer: | Enidine |
| Model: | ADA 510 TC |
| Enidine part number: | FP495710TC |
| Series: | ADA 500 |
| Type: | Adjustable, double acting rate control |
| Damping direction: | Adjustable Compression, Adjustable Tension |
| Stroke: | 4 in (100.0 mm) |
| Max. energy per hour: | 850,000 in-lbs/hour (96 050 Nm/hour) |
| Bore size: | .63 in (16.0 mm) |
| Max. propelling force, tension: | 450 lbs (2 000 N) |
| Max. propelling force, compression: | 375 lbs (1 670 N) |
| Weight: | 0.80 lbs (0.372 kg) |
Source: Enidine 2026 price list; ratings from the Enidine shock absorber catalogue (p.107).
