ADA 505 PC Enidine Adjustable Rate Control, 2.00 in Stroke, Adjustable Compression, Free Flow Tension
Sku#: ADA 505 PC
Contact us for availability.
Details
More Information
Reviews

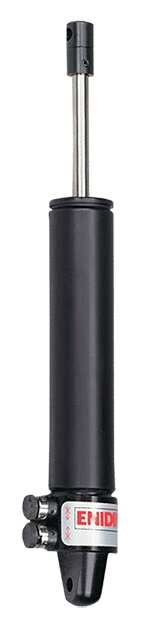

The Enidine ADA 505 PC is an adjustable, double acting rate control with 2.00 in (50.0 mm) stroke: adjustable Compression, Free Flow Tension.
Enidine rate controls regulate the speed and time a mechanism takes to move from one position to another. Adjustable, double acting ADA 500 and ADA 700 Series rate controls regulate speed in tension and/or compression independently, so the rate can be adjusted to suit the application.
Specifications:
| Manufacturer: | Enidine |
| Model: | ADA 505 PC |
| Enidine part number: | FP495705 |
| Series: | ADA 500 |
| Type: | Adjustable, double acting rate control |
| Damping direction: | Adjustable Compression, Free Flow Tension |
| Stroke: | 2 in (50.0 mm) |
| Max. energy per hour: | 650,000 in-lbs/hour (73 450 Nm/hour) |
| Bore size: | .63 in (16.0 mm) |
| Max. propelling force, tension: | 450 lbs (2 000 N) |
| Max. propelling force, compression: | 450 lbs (2 000 N) |
| Weight: | 0.68 lbs (0.3 kg) |
Source: Enidine 2026 price list; ratings from the Enidine shock absorber catalogue (p.107).
