A4TM0M NGT 1/4 Tube Pilot-Operated Check Valve, Manual Release
Sku#: A4TM0M
Contact us for availability.
Details
More Information
Reviews

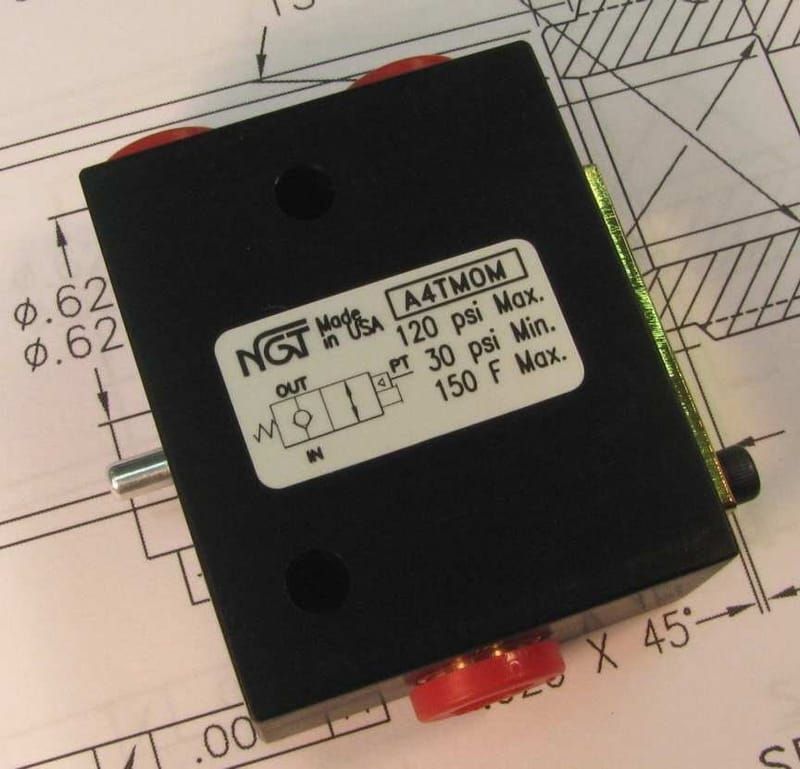

The NGT A4TM0M is a 1/4 Tube pilot-operated check valve with a manual release.
Basic Operation:
Lock your pneumatic device in position when a pressure drop or total loss of pressure occurs. Manual release for exhausting trapped air before maintaining the system (OSHA Requirement).
- New Smaller Size
- Push-on Connectors
- Manual Release
- .000113 cc/min Leak Rate
Operating Data:
| Max. Pressure: | 120 psi |
| Min. Pilot Pressure: | 30 psi @ 80 psi |
| Leak Rate: | .000113 cc/min |
| Temperature Range: | 30 - 150 F |
| Cycle Rate: | 1 cyc./sec. max. |
| Flow Capacity (Cv): | .50 max. (or I.D. of tube) |
| Cracking Pressure: | 2 - 3 psi |
| Service: | Properly filtered dry air or lubricated air |
Available Models:
| Model No. | Manual Release |
|---|---|
| 1/4 Tube | A4TM0M |
