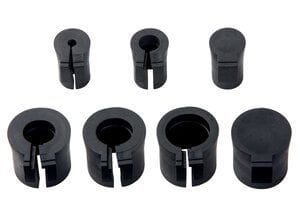

87141224 Murrplastik KDT/X 09 Cable Entry Grommet

Sku#: 87141224

Contact us for availability.

Split cable grommet for 9–10 mm pre‑assembled cables; snaps into KDL/C, D, or H frames; thermoplastic elastomer; –30 °C to +100 °C; UL 94 V‑0; RoHS- and UV-compliant. (Ships in Packs of 12)

The Murrplastik KDT/X 09 cable entry grommet (P/N 87141224) offers a quick retrofit solution for routing 9–10 mm pre‑assembled cables through KDL/C, KDL/D, or KDL/H entry systems. Its two-piece design wraps around the cable and snaps securely into the frame using integrated catch-tabs.

  • Cable diameter: 9–10 mm

  • Material: Thermoplastic elastomer (TPE)

  • Temperature range: –30 °C to +100 °C

  • Flame rating: UL 94 V‑0

  • Compliance: RoHS compliant, UV resistant

  • Certifications: Made in Germany

  • Packaging: Sold in packs of 12

Important notice: Double cable grommets, multi-line versions, ASI/USB, and adapter grommets are not UL/cURus listed .

This grommet is ideal for industries like switchgear engineering, machinery, automotive, rail, packaging, energy, and food, offering hassle-free installation and effective cable protection in demanding settings.
