MPS 3-Phase Power Supply – 24V DC / 10A (Art. No. 85065)

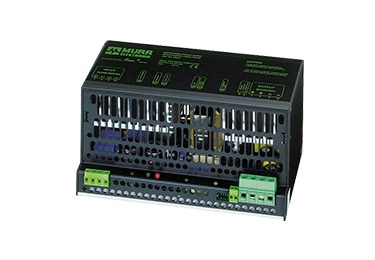

The Murrelektronik MPS 85065 is a DIN-rail mounted switch mode power supply for three-phase 400 V AC networks. It delivers a regulated 24 V DC SELV output, adjustable from 22 to 28 V, at 10 A continuous up to +60 °C or 12 A up to +40 °C, with 90% efficiency.

Key Features:

• 3-Phase Input: 3 × 340...460 V AC, 50...60 Hz
• Adjustable Output: 24 V DC ±1%, adjustable 22...28 V DC
• Output Current: 10 A at +60 °C, 12 A at +40 °C
• High Efficiency: 90%
• Phase Monitoring: switches off during 2-phase operation
• LED Status Display: green in operation, red off, yellow pre-warning when overheated or overloaded
• Parallel and Series Connection: yes / yes
• Approvals: cULus Listed

Built-in Protections:

• Short-circuit and overload protected
• Low ripple (max. 20 mVrms) and spikes (max. 100 mV p-p)
• Mains failure bridging time of min. 3 ms at 400 V AC

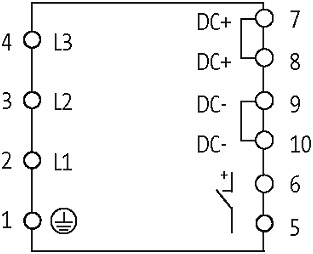

Connection Details:

• Input: terminal 1 PE, terminals 2, 3 and 4 L1, L2 and L3
• Output: terminals 7 and 8 DC+, terminals 9 and 10 DC-
• Signal contact: terminals 5 and 6
• Mounting: DIN rail TH35 (EN 60715); screw mounting with additional plate Art.-No. 89500

Specifications:

Applications:
A dependable 24 V DC supply for control cabinets fed from a 400 V or 460 V three-phase network, powering PLCs, sensors, valves and other 24 V DC automation loads.
