IMPACT67 Pro EtherNet/IP IO-Link Master – 8 Ports (Art. No. 54631)

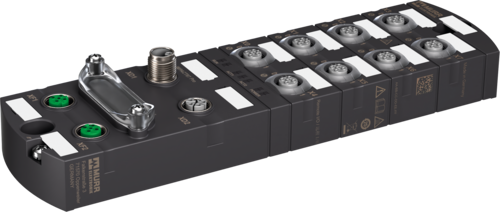

The Murrelektronik IMPACT67 Pro E DIO8 IOL8 M12L 5P is an IP67 EtherNet/IP compact I/O module in a fully potted plastic housing. Its eight M12 ports work as IO-Link masters (IO-Link V1.1, Port Class A and B) or as digital inputs and outputs, so IO-Link devices, sensors and actuators connect directly in the field. Power is supplied through M12 L-coded 5-pole connectors, and the network connects through two M12 D-coded Ethernet ports.
Key Features:
- 8 IO-Link Master Ports: IO-Link V1.1, Port Class A and B, COM1/COM2/COM3 with automatic baud rate detection, 32 byte process data in and out
- Digital I/O: PNP inputs for 3-wire sensors, mechanical switches and IO-Link devices; outputs up to 2 A per pin and 4 A per port
- EtherNet/IP: CIP Sync, Device Level Ring (DLR) and multiple connections; Composite Test Revision CT16
- Easy Addressing: BOOTP, DHCP or DIP switch, plus an integrated web interface
- IT Integration: OPC UA (UA TCP, Binary Encoding, Secure Conversation) and JSON via REST-API and MQTT
- High Power Capacity: 24 V DC US and UA, up to 16 A each, via M12 L-coded connectors
- Rugged: IP67, fully potted housing, -40 to +70 °C operating temperature
- Drop-In Mounting: mounting compatible with Murrelektronik MVK series I/O modules
Diagnostics:
- Diagnostics per module and per channel, via LED and via the bus
- Actuator warning per channel; cable break detection per port
- Current monitoring, voltage monitoring and temperature control
- IO-Link events for undervoltage supply and no voltage
- LED display of Ethernet connection and data traffic
Connections:
- X0 – X7: I/O and IO-Link ports, M12 5-pole A-coded, female
- XD1: power, M12 5-pole L-coded, male
- XD2: power, M12 5-pole L-coded, female
- XF1, XF2: Ethernet, M12 4-pole D-coded, female (tightening torque 0.6 Nm)

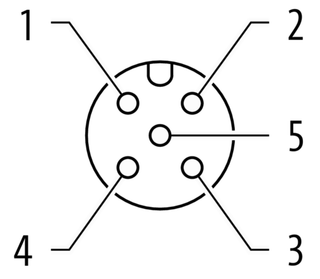

I/O Port Pinout (X0 – X7, M12 A-coded):
- Pin 1: 24 V DC
- Pin 2: DI / DO
- Pin 3: 0 V
- Pin 4: DI / DO / IO-Link
- Pin 5: 0 V

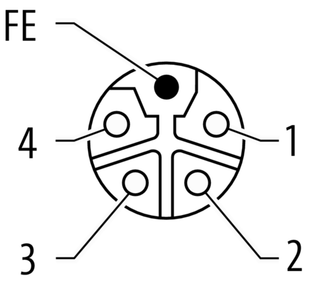

Power Pinout (XD1 / XD2, M12 L-coded):
- Pin 1: 24 V DC (US)
- Pin 2: 0 V
- Pin 3: 0 V
- Pin 4: 24 V DC (UA)
- Pin 5: PE

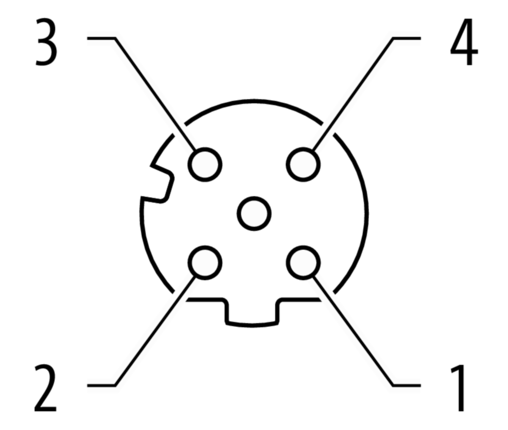

Ethernet Pinout (XF1 / XF2, M12 D-coded):
- Pin 1: TD +
- Pin 2: RD +
- Pin 3: TD -
- Pin 4: RD -
Specifications:
| Fieldbus: | EtherNet/IP, Ethernet 10/100 Mbit/s |
| IO-Link: | Master V1.1, 8 ports, Port Class A and B |
| Transmission Rate: | COM1, COM2, COM3 (automatic detection) |
| Process Data Length: | 32 byte input / 32 byte output |
| Operating Voltage US / UA: | 24 V DC / 24 V DC (IEC/EN 61131-2) |
| Total Current US / UA: | max. 16 A / max. 16 A |
| Sensor Current per Input: | max. 2 A |
| Input Type: | PNP; 3-wire sensors, mechanical switches, IO-Link devices |
| Output Current: | max. 2 A per pin, max. 4 A per port |
| Total Output Current: | max. 10 A |
| Short-Circuit / Overload: | Protected / resistant (inputs and outputs) |
| Addressing: | BOOTP, DIP switch, DHCP |
| EtherNet/IP Features: | CIP Sync, Device Level Ring (DLR), multiple connections, CT16 |
| Web Interface: | Yes |
| JSON Integration: | REST-API, MQTT |
| OPC UA: | UA TCP, UA Binary Encoding, UA Secure Conversation; min. 100 ms publishing; max. 5 sessions |
| Degree of Protection: | IP67 (EN IEC 60529), housing fully potted |

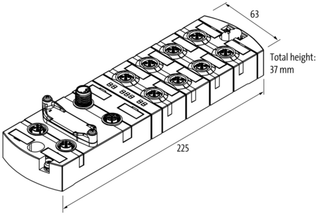

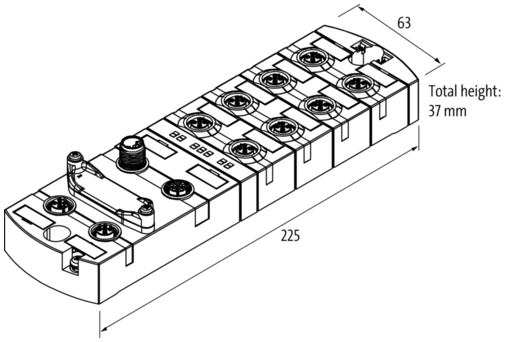

| Dimensions (H x W x D): | 37 x 63 x 225 mm (1.46 x 2.48 x 8.86 in) |
| Mounting: | 2-hole screw mounting |
| Weight: | 0.470 kg (1.04 lb) |
| Operating Temperature: | -40 ... +70 °C (-40 ... +158 °F) |
| Storage / Transport Temperature: | -40 ... +85 °C (-40 ... +185 °F) |
| Country of Origin: | Germany |
Connection cables for the I/O, power and Ethernet ports are available separately.
